Stainless Steel Distance Bushings for Indexing Plungers: Precision Adaptation for Varied Industrial Applications

Introduction

In industrial assembly and automation, consistency in component mounting is critical—yet variable material thicknesses often challenge this precision. Our Stainless Steel Distance Bushings address this gap by seamlessly compensating for indexing plunger thread lengths. Engineered for durability and adaptability, these bushings enable reliable mounting across walls of differing thicknesses, eliminating design compromises and enhancing operational efficiency.

Core Functionality & Design

Problem Solved:
Indexing plungers typically feature fixed thread lengths, restricting their use to uniform wall thicknesses. When walls vary (e.g., in multi-material assemblies or custom machinery), misalignment or instability can occur, risking component failure or reduced accuracy.

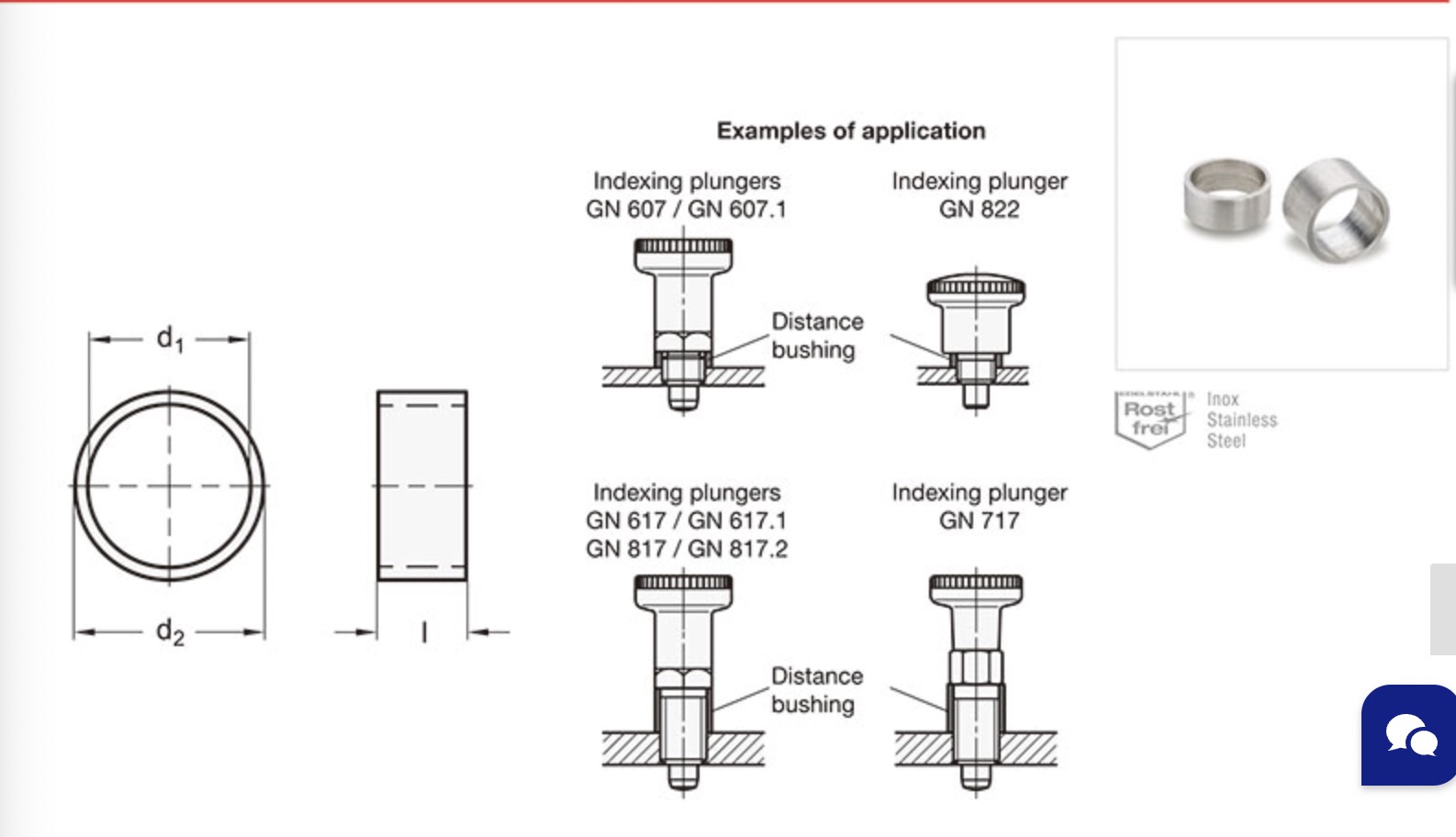

How Distance Bushings Work:

• Thread Compensation: The bushings act as spacers between the plunger body and mounting surface, extending the effective thread reach to accommodate thicker walls.
• Material Integrity: Crafted from 316/304 stainless steel, they resist corrosion, high temperatures (up to 800°F), and mechanical stress, ensuring longevity in harsh environments.
• Precision Tolerance: Machined to ±0.01mm accuracy, they maintain plunger alignment, preventing wobble or deflection during indexing operations.

Key Advantages

1. Versatility:
   Deploy a single plunger across projects with wall thicknesses ranging from 5mm to 50mm—reducing inventory costs and simplifying BOM management.

2. Enhanced Reliability:
   Stainless steel construction prevents galvanic corrosion when paired with aluminum/steel fixtures, while hardened surfaces resist wear from repeated adjustments.

3. Time & Cost Efficiency:
   Eliminate custom machining or re-engineering for each wall variation. Install bushings in seconds using standard tools.

4. Safety Compliance:
   Non-magnetic properties suit sensitive electronics, and ISO 9001-compliant manufacturing ensures traceability and consistency.

Industrial Applications

• Automation Systems: Stabilize robotic arms or conveyor guides on composite panels.
• Tooling & Fixtures: Securely mount jigs in aerospace machining with mixed-material substrates.
• Packaging Machinery: Adapt plunger sensors for variable-thickness hoppers or chutes.
• Renewable Energy: Maintain alignment in solar tracker assemblies exposed to weather extremes.

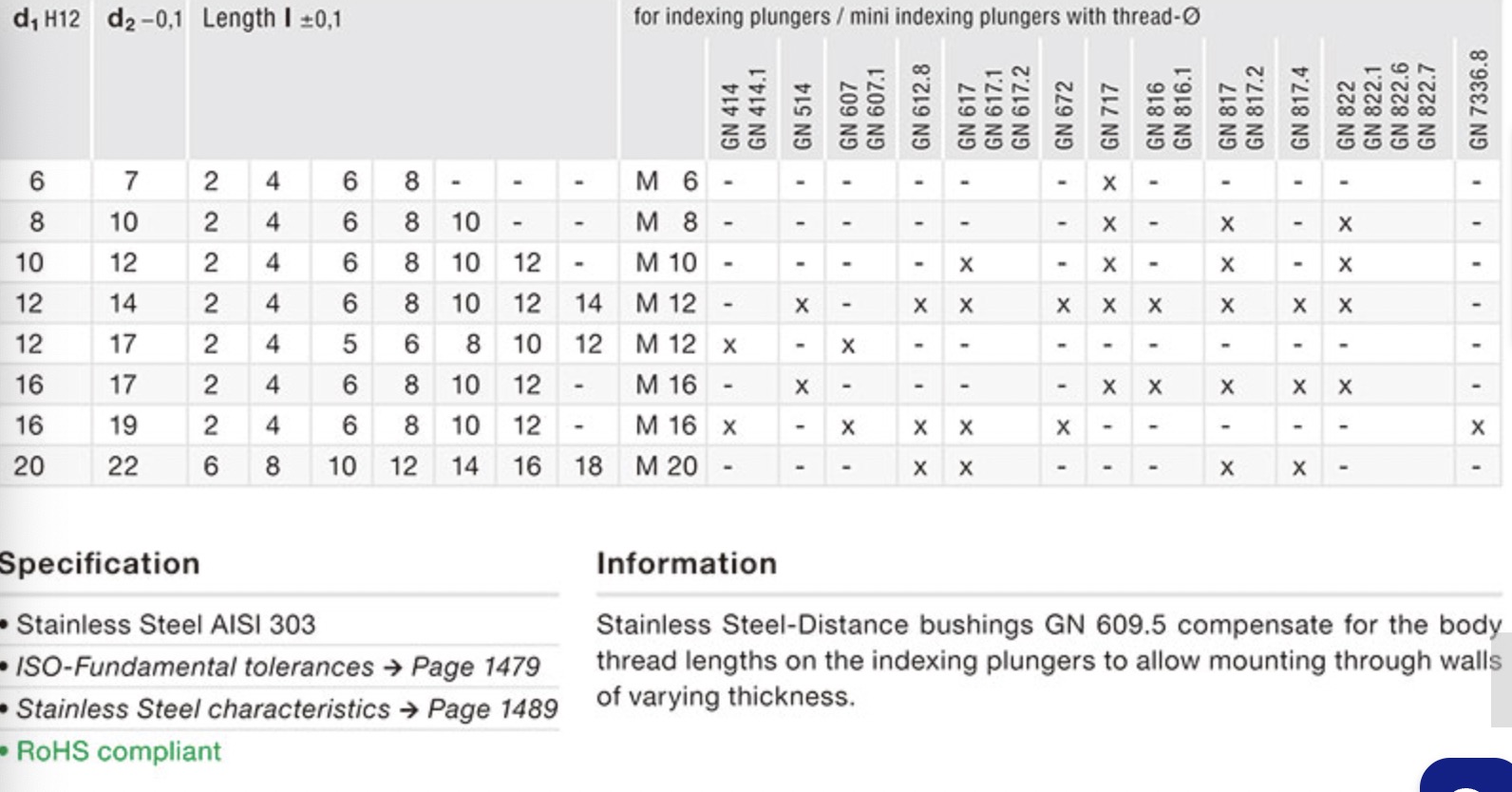

Technical Specifications

| Property | Detail |
|--------------------------|---------------------------------|
| Material | AISI 316/304 Stainless Steel |
| Hardness | 85-90 HRB (Rockwell B Scale) |
| Temperature Resistance | -40°C to 425°C (-40°F to 800°F) |
| Surface Finish | Electropolished (Ra ≤ 0.4 μm) |
| Sizes Available | M6 to M24 threads; Customizable |

Why Choose Our Solution?

Unlike generic spacers, our distance bushings are purpose-built for indexing plungers. Each unit undergoes rigorous QA checks for dimensional stability and load distribution. By integrating them into your assembly process, you achieve:

• Zero Downtime: No recalibration after installation.
• Scalability: Support prototyping to mass production with batch consistency.
• Sustainability: 100% recyclable material with a lifespan exceeding 10 years.

Partner with Precision: Optimize your manufacturing resilience. Contact our engineering team for application-specific solutions or bulk quotes.

TKD Information

• Title:
  Stainless Steel Distance Bushings for Indexing Plungers | Compensate Variable Wall Thickness
• Keywords:
• Precision distance bushings
• Indexing plunger spacers
• Stainless steel mounting bushings
• Thread length compensation
• Industrial spacer adapters
• Description:
  High-tolerance stainless steel distance bushings for indexing plungers. Compensate 5–50mm thickness. Corrosion-resistant, temperature-stable, and customizable. Reduce costs and boost assembly reliability. Request a quote today.

© 2025 | Engineered for Industries Demanding Excellence

Stainless Steel Distance Bushings for Indexing Plungers: Precision Mounting

In precision-driven industries, indexing plungers serve as indispensable components for positioning and locking applications. Yet their fixed thread lengths pose a significant challenge when mounting through walls of varying thickness—a common scenario in multi-material assemblies or custom machinery. Our Stainless Steel Distance Bushings eliminate this design constraint by providing engineered compensation for thread reach discrepancies. Crafted for mission-critical applications, these components ensure consistent alignment, operational stability, and long-term reliability across diverse industrial landscapes.

Core Functionality & Engineering Design

Addressing the Fundamental Challenge

Indexing plungers with unadjustable thread lengths force engineers into suboptimal solutions when wall thickness varies:

• Misalignment risks causing deflection during cyclic operations
• Instability in high-vibration environments
• Premature wear from uneven load distribution
• Costly re-engineering for each unique application

Precision-Engineered Solution Architecture

1. Thread Compensation Mechanism
   Acting as precision spacers between the plunger body and mounting surface, these bushings extend effective thread engagement by 5–50mm. This maintains full-thread contact even when wall thickness exceeds the plunger’s native capacity.

2. Advanced Material Science
   Fabricated from AISI 316/304 stainless steel, the bushings deliver:

• Saltwater/chemical corrosion resistance
• Thermal stability from -40°C to 425°C (-40°F to 800°F)
• Non-magnetic properties for electronics-sensitive zones
• Electropolished surface (Ra ≤ 0.4 μm) to prevent particulate adhesion

1. Micron-Level Precision
   Machined to ±0.01mm tolerances, each bushing guarantees:

• Zero radial wobble during indexing cycles
• Uniform load distribution across contact surfaces
• Interchangeability within production batches

Strategic Advantages for Industrial Operations

Operational Efficiency

• Inventory Rationalization
  Standardize plunger models across projects with wall thickness variations, reducing SKU proliferation by up to 70%.

• Installation Speed
  Deploy with standard hex wrenches in <15 seconds—no specialized tools or threading modifications required.

Performance Enhancement

• Corrosion Mitigation
  316L stainless construction prevents galvanic reactions when interfacing with aluminum/steel fixtures.

• Mechanical Resilience
  Hardness-rated at 85-90 HRB to withstand repeated positional adjustments without deformation.

• Zero-Maintenance Operation
  Electropolished surfaces resist particulate buildup, ensuring consistent performance in1-Certified Manufacturing**
  Full material traceability and statistical process controls.

• Environmental Alignment
  100% recyclable construction with >10-year service lifespan reduces replacement frequency.

Industrial Application Scenarios

Automation & Robotics

• Stabilize SCARA arms mounted through composite control panels
• Ensure repeatable positioning in automotive welding jigs

Aerospace Tooling

• Secure inspection fixtures on titanium-aluminum hybrid airframe structures
• Maintain ±0.05mm alignment in CNC machining centers

Sustainable Energy Infrastructure

• Weatherproof positioning in solar tracker drive assemblies
• Corrosion-free performance turbine control systems

Packaging Machinery

• Adapt sensor plungers across variable-thickness hoppers
• Eliminate vibration-induced errors in high-speed filling lines

Technical Specifications

| Parameter | Specification | |---------------------------|-----------------------------------| | Material Grade | AISI 316/304 Stainless Steel | | Thread Range | M6 to M24 (Custom diameters available) | | Compensation Range | 5mm – 50mm | | Temperature Resistance| -40°C to 425°C (-40°F to 800°F) | | Surface Finish | Electropolished (Ra ≤ 0.4 μm) | | Tolerance | ±0.01mm | | Certification | ISO 9001:2015 Compliant |

Application-Specific Engineering

Unlike universal spacers, these bushings feature:

• Plunger-Tailored Geometry
  Contoured interfaces matching plunger body profiles
• Load-Optimized Walls
  Finite-element-analyzed thickness for impact resistance
• Batch Consistency
  100% laser-verified dimensional checks per production run

Lifecycle Value Proposition

• 15,000+ Cycle Durability
  Verified through accelerated wear testing
• Downtime Elimination
  No post-installation recalibration required
• Prototype-to-Production Scalability
  Seamless transition from custom samples to bulk orders

TKD Information

• Title: Stainless Steel Distance Bushings for Indexing Plungers | Precision Compensation for Variable Wall Thickness
• Keywords:
• Precision distance bushings
• Indexing plunger spacers
• Stainless steel mounting bushings
• Thread length compensation
• Industrial spacer adapters
• High-tolerance compensators
• Corrosion-resistant spacers
• Description: Engineered stainless steel distance bushings compensate for 5–50mm wall thickness variations in indexing plunger installations. Featuring AISI 316/304 construction, electropolished surfaces, and ±0.01mm tolerances. Reduces inventory costs while ensuring mounting stability in harsh environments. Custom sizes available.
• | Engineered for Industries Demanding Excellence

Optimize your assembly integrity—contact our engineering team for application validation or request instant bulk pricing.
