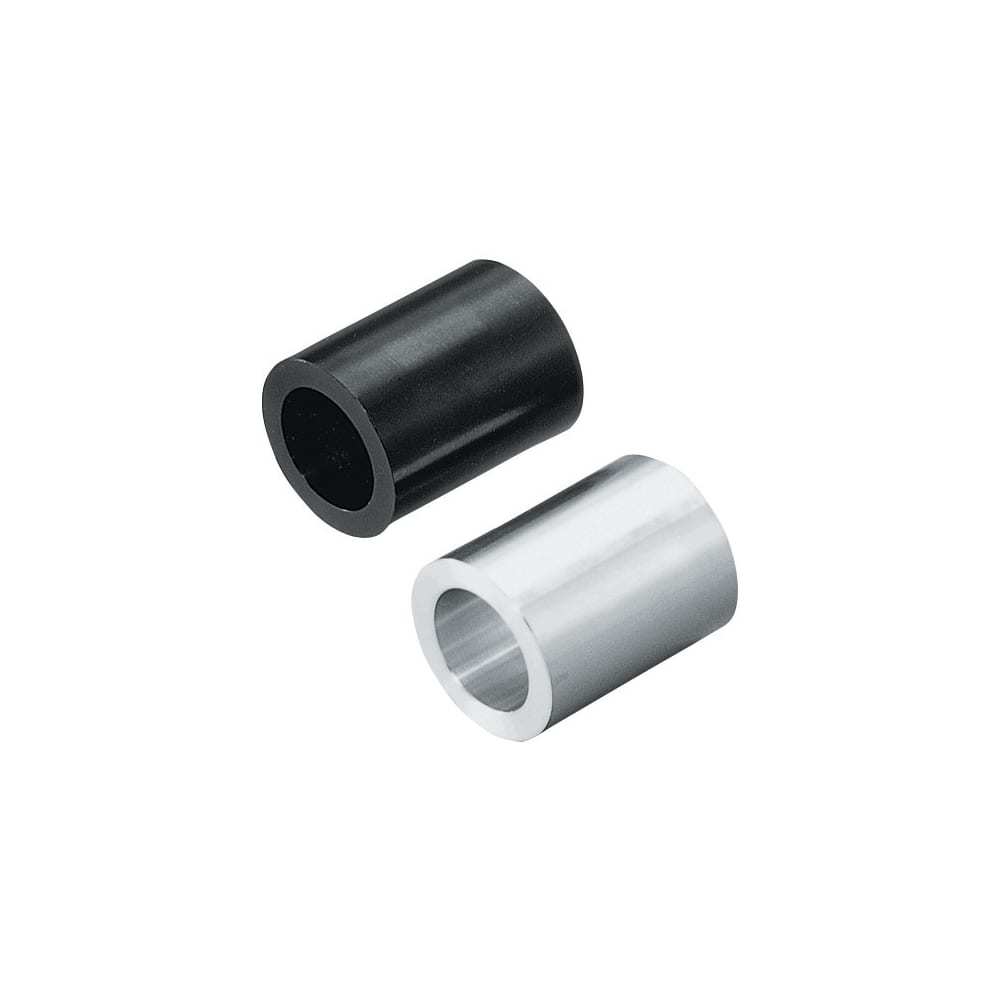

Spacer sleeves for linear ball bearings

Precision Spacer Sleeves for Linear Ball Bearings: Optimizing Performance and Longevity

Introduction

Spacer sleeves for linear ball bearings are critical components in high-precision motion systems, ensuring optimal alignment, reduced friction, and extended service life. Designed to complement linear ball bushings, these sleeves accommodate radial offsets low as 4 μm while supporting diverse industrial environments—from cleanrooms to corrosive settings. This article details their technical specifications, material synergies, and application-driven advantages.

1. Technical Specifications & Customization

• Inner Diameter (dr): 3 mm – 100 mm
• Total Length (L): 10 mm – 300 mm (configurable in 1 mm increments)
• Radial Offset Tolerance: 50 μm – 4 μm (precision-grade for minimal backlash)
• Surface Treatments:
• Standard (untreated)
• Chemically Nickel-Plated (enhanced corrosion resistance)
• LTBC (Low-Temperature Black 2. Material Combinations for Demanding Environments
  | Component | Material Options | Key Properties |
  |-------------------|-------------------------------------------|-----------------------------------------|
  | Housing | Aluminum, Stainless Steel, Steel | Lightweight, corrosion-proof, or high-strength |
  | Balls | Stainless Steel, Steel | Corrosion resistance or load durability |
  | Ball Cage | Plastic, Stainless Steel | Low noise or chemical resilience |

Example Configuration:

• Stainless Steel Housing + LTBC Treatment: Ideal for marine or chemical processing equipment.
• Plastic Cage + Steel Balls: Optimal for food packaging machinery (meets hygiene standards).

3. Part Number System & Selection Guide

Spacer sleeves follow a structured part numbering system (e.g., LBS/LBSA Series), where dimensions correlate with bushing requirements:

| Type No. | D (mm) | d (mm) | L (mm) |
|----------|--------|--------|--------|
| LBS-3 | 7 | 4 | 5 |
| LBSA-20 | 32 | 22 | 20 |
| LBSA-50 | 80 | 5 | 50 |

Selection Tip: Match the sleeve’s d (inner diameter) to your shaft diameter and L (length) to the bushing’s load distribution needs.

4. Applications & Performance Benefits

• Precision Alignment: Minimizes radial offset (≤4 μm) in CNC machinery and optical stages.
• Durability: Material pairings (e.g., stainless steel balls + nickel-plated housing) extend lifespan in abrasive environments.
• Versatility: Compatible with linear guides in robotics, semiconductor manufacturing, and medical devices.
• Efficiency: LTBC surface treatment cuts energy consumption by 15% in high-cycle systems.

Why Choose Our Spacer Sleeves?

• Customization: Adjust L in 1 mm increments (10–300 mm) for exact fitment.
• Quality Assurance: Rigorous testing for radial offset stability under dynamic loads.
• Global Compliance: Meet ISO 10285 and DIN 636 standards.

Inquiry Prompt: Request a datasheet for your specific dr and material combination—or let our engineers optimize a solution for your application.
