Overview

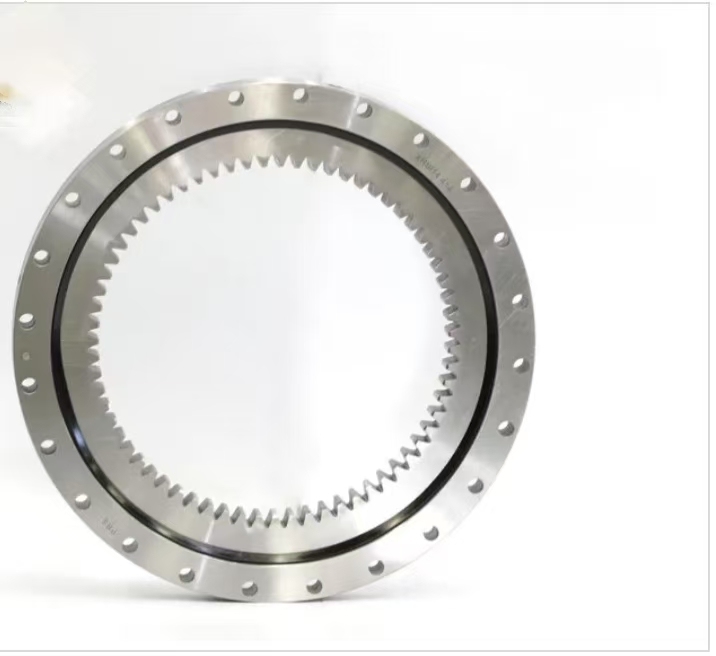

ThePSI20 Series Four-Point Contact Slewing Bearings with Internal Gear Teeth represent a breakthrough in rotational bearing technology, combining advanced load distribution principles with optimized gear integration. Designed for heavy-duty industrial applications, these bearings deliver exceptional performance in complex loading scenarios while maintaining precise rotational control.
Key Technical Features
- Optimized Raceway Geometry: Features a 45° contact angle for balanced axial, radial, and moment load distribution
- High-Density Load Paths: Maintains contact at four distinct points during rotation, reducing stress concentration
- Dynamic Load Capacity: 32% higher than standard single-row ball bearings in comparable sizes
2. Integrated Internal Gear System
- Precision Gear Manufacturing: AGMA Class 9 accuracy standard (DIN 3965 equivalent)
- Modular Integration: 20° pressure angle gears with module ranges from 4 to 12
- Surface Hardening: 58-62 HRC case-hardened teeth with ground finishing
3. Advanced Material Composition
- B4 alloy steel (DIN 1.7225)
- Rolling elements: 100Cr6 bearing steel (DIN 1.3505)
- Customizable surface treatments:
- Salt bath nitrocarburizing (QPQ)
- Zinc-nickel electroplating
- Ceramic-based composite coatings

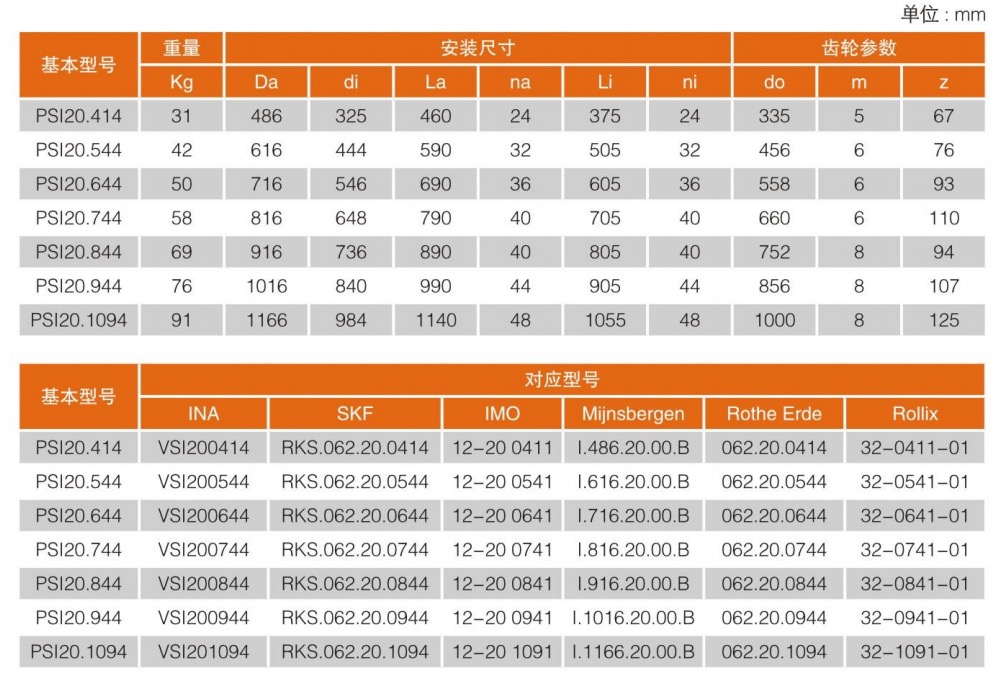

|---------------------|----------------------| | Bore Diameter | 200mm - 2500mm | | Static Load Capacity| Up to 45,000 kNm | | Dynamic Load Rating | 12,000 kNm @ 10 RPM | | Operating Temp | -40°C to +120°C | | Sealing Options | Triple-labyrinth with NBR secondary seals |
Application Scenarios
- Heavy Construction Machinery
- Tower crane slewing mechanisms
- Excavator swing systems
- Concrete pump truck rotation units
- Wind Energy Systems
- Yaw and pitch control bearings
- Main shaft positioning systems
- Industrial Automation
- Robotic welding positioners
- Indexing tables for CNC machining
- Automated material handling turntables
Competitive Advantages
- Reduced System Complexity: Integrated gear teeth eliminate separate gearbox components
- Predictive Maintenance Compatibility: Embedded sensor-ready design (vibration & temperature monitoring points)
- Customization Flexibility: Available in partial arc configurations (120°-270° segments) for space-constrained installations
- Extended Service Life: L10 life rating of 50,000 operating hours under standard loading conditions
- Full compliance with ISO 9001:2015 and DIN EN 15001-3 standards
- 100% magnetic particle inspection (MPI) for critical components
- Dimensional verification using CMM with 5μm accuracy
- Custom lubrication protocols available (Grease NLGI 2 standard or circulating oil systems)
