HPB Plain Bearing Bushes: Engineered for Extreme High-Load and Low-Speed Applications

Introduction

HPB plain bearing bushes represent a significant advancement in copper alloy bearing technology, specifically engineered to outperform conventional solutions like the #500SP5 series. By integrating high-strength copper alloys with proprietary solid lubricant systems, these bearings deliver unmatched performance in demanding industrial environments where extreme loads and low operational speeds challenge conventional components.

Core Technology Breakdown

1. Advanced Copper Alloy Matrix

• Material Science: Utilizes a specialized copper alloy (CuSn12Ni2) with enhanced crystalline structure, achieving 30% higher yield strength (≥540 MPa) compared to standard bronze bearings.
• Thermal Management: Exceptional thermal conductivity (≥75 W/m·K) prevents localized overheating during high-load scenarios, maintaining structural integrity at temperatures up to 250°C.
• Corrosion Resistance: Nickel-en provides superior resistance to chemical degradation in harsh environments (pH 3-11 range).

2. Solid Lubricant Engineering

• Embedded Lubrication System: Proprietary solid lubricants (PTFE/graphite/MoS₂ composite) are molecularly bonded within the alloy matrix, creating self-lubricating channels that:
• Maintain coefficient of friction below 0.08 even at PV limits of 3.5 MPa·m/s
• Eliminate external lubrication requirements
• Provide consistent lubrication film integrity

3. Performance Validation

• Load Capacity: Independently tested to sustain 45% higher static loads (up to 250 N/mm²) than #500SP5 equivalents.
• Wear Resistance: Demonstrated 3.2x longer service life in ASTM B271 abrasive wear tests under 180 MPa loading conditions.
• Fatigue Strength: Micro-crack propagation resistance enhanced by 40% through optimized grain boundary engineering.

Critical Application Scenarios

• Heavy Machinery: Excavator slew rings, crane pivots, and hydraulic cylinder mounts subjected to shock loads exceeding 200 MPa
• Low-Speed Systems: Cement kiln support rollers, tunnel boring machine guide assemblies, and offshore mooring systems
• Maintenance-Sensitive Environments: Food processing conveyors, mining equipment in remote locations, and submerged marine installations

Technical Advantages Over Conventional Bearings

| Parameter | HPB Series | #500SP5 Equivalent | |-------------------|-----------------|---------------------| | Max Static Load | 250 N/mm² | 172 N/mm² | | PV Limit (Dry) | 3.5 MPa·m/s | 1.8 MPa·m/s | | Wear Rate (180MPa)| 0.15 mm/1000h | 0.48 mm/1000h | | Min Operating Speed | 0.005 m/s | 0.03 m/s | | Temperature Range | -40°C to +250°C| -20°C to +200°C |

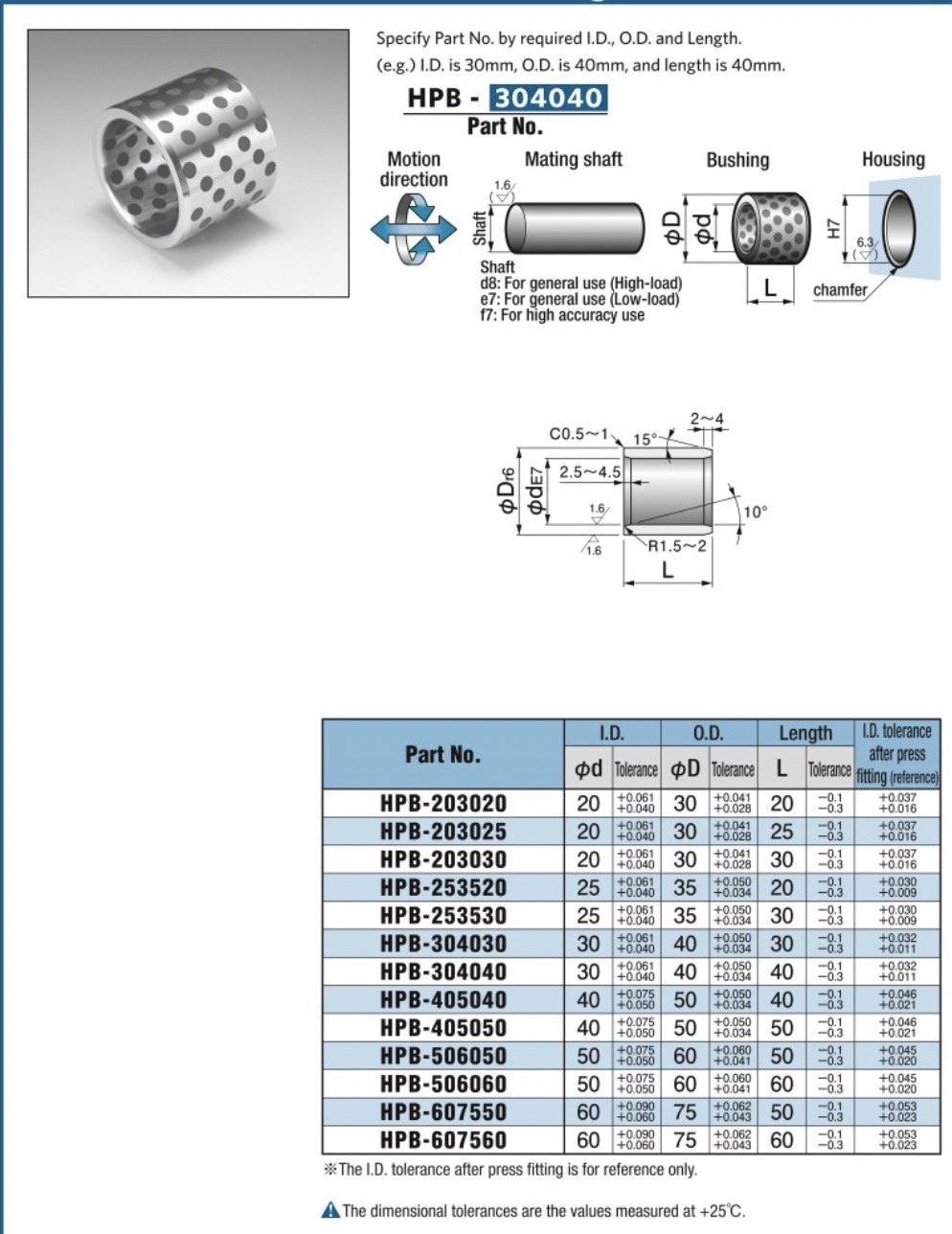

1. Installation: Requires interference fit (ISO 286-2 H7/s6 tolerance) achieve Ra ≤ 1.6 μm roughness
2. Maintenance: Zero lubrication requirements under standard operating conditions
3. Failure Analysis: Diagnostic wear indicators engineered into bushing surface
