Introduction

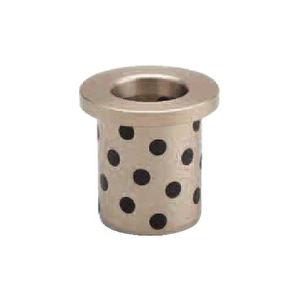

Guide bushes, also known as linear bushings or sleeve bearings, are critical components in machinery requiring precise linear motion. Engineered to guide shafts with minimal friction and maximum stability, they are indispensable in applications ranging from CNC machinery to automotive systems. Our configurable guide bushes with collar and integrated solid lubricant represent a leap forward in reliability, customization, and efficiency.
Key Features and Innovations
- Robust Collar Design
- The integrated collar provides enhanced axial stability, preventing misalignment during high-speed or high-load operations.
- Ideal for vertical installations (e.g., presses or drilling equipment), where positional accuracy is non-negotiable.
- Solid Lubricant Technology
- Embedded solid lubricant (e.g., graphite or polymer-based compounds) ensures consistent lubrication without oil or grease.
- Benefits:
- Eliminates contamination risks in clean environments (e.g., medical devices or food processing).
- Reduces maintenance frequency by 40–60% compared to traditional lubricated bushes.
- Operates reliably in extreme temperatures (-30°C to +150°C) and vacuum conditions.
- Fully Configurable Specifications
- Customize dimensions (ID: 3–100 mm; OD: 5–120 mm), materials (steel, bronze, or corrosion-resistant alloys), and tolerance grades (ISO h6–h9).
- Optional features:
- Flange variations (round, square, or custom shapes).
- Anti-rotation pins or threaded collars for secure mounting.
- Coatings (e.g., DLC or nickel-plated) for abrasive environments.
Applications Across Industries
- Automotive: Precision guiding in fuel injection systems and transmission assemblies.
- Industrial Automation: Linear actuators in robotics and conveyor systems.
- Aerospace: Landing gear mechanisms and satellite component alignment.
- Medical: MRI machines and surgical robotics requiring silent, particulate-free motion.
- Extended Service Life: Solid lubricant reduces wear by 70%, with MTBF (Mean Time Between Failures) exceeding 20,000 operational hours.
- Zero Maintenance: Self-lubricating design cuts downtime and operational costs.
- Global Certifications: Compliant with ISO 9001, RoHS, and REACH standards.
- Rapid Prototyping: 3D-printed samples available in 72 hours for design validation.
Partner with Us for Tailored Solutions
Whether you need a standard SKU or a fully bespoke guide bush solution, our engineering team collaborates closely to meet exact specifications. Request a free technical consultation or material sample today to experience unmatched precision and durability.
