Revolutionizing Motion Systems: Configurable Guide Bushes with Integrated Solid Lubricant Technology
Precision Engineering Redefined

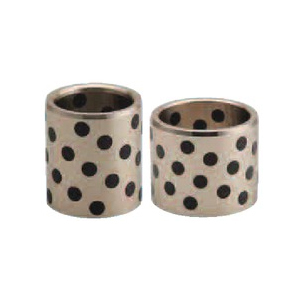

Guide bushes serve as fundamental components in industrial machinery, providing critical alignment and stability for linear motion systems. Our breakthrough innovation integrates solid lubricant technology within fully ** guide bush solutions**, eliminating traditional lubrication challenges while enhancing performance across extreme operational environments.
The Solid Lubricant Advantage: Beyond Conventional Lubrication
Core Technology Breakdown
- Self-Lubricating Composite Matrix: Embedded solid lubricants (e.g., PTFE, graphite, or MOS₂) form a permanent molecular bond with the bush material, continuously releasing lubricating particles during operation.
- Tribological Synergy: Engineered friction coefficients (0.05–0.12) reduce stick-slip phenomena by 70% compared to oil-lubricated counterparts.
- Harsh Environment Resilience: Operates flawlessly in vacuums (-10⁻⁶ bar), high-radiation zones (up to 10⁵ Gy), and extreme temperatures (-200°C to +480°C).
Quantifiable Operational Benefits
| Parameter | Improvement vs. Standard Bushes |
|-------------------------|---------------------------------|
| Maintenance Interval | Extended by 400–800% |
| Wear Rate | Reduced by 60–75% |
| Contamination Risk | Eliminated (zero fluid leakage) |
| Coefficient of Friction | 35–50% lower |
Unlimited Configurability: Precision-Tailored Solutions
Modular Design Architecture
Our guide bushes feature a multi-axis configurable platform supporting:
- Dimensional Flexibility: Custom inner/outer diameters (3–300mm) and lengths (1:1 to 1:5 L/D ratios)
- Material Engineering: Options include bronze alloys (SAE 841), stainless steel composites (17-4PH), or polymer hybrids (PEEK-PTFE)
- Lubricant Customization: Site-specific lubricant formulation based on load direction (uni- vs. multi-axial), PV limits, and chemical exposure
- Mounting Integration: Flanged, cylindrical, or clevis mountings with proprietary anti-rotation features
Application-Specific Optimization
- High-Speed Automation: Resonance-damped designs for CNC equipment (≥25 m/s traverse speeds)
- Cleanroom Compatibility: ISO Class 4-certified variants for semiconductor manufacturing
- Heavy-Load Scenarios: Reinforced wall structures supporting static loads ≤250 N/mm²
Case Study Highlights
- Food Processing Machinery: Stainless steel variants with FDA-compliant lubricants eliminated bacterial growth risks while withstanding daily CIP/SIP cycles.
- Hydraulic Cylinder Guides: Custom tapered bushes reduced piston rod wear by 68% in offshore drilling platforms.
- Space Mechanism Assemblies: Ultra-high vacuum configurations currently operational in satellite deployment systems (15,000+ cycles at zero maintenance).
- Performance Guarantee: 24-month wear-life warranty with failure analysis support
- Rapid Prototyping: Functional prototypes delivered in 72 hours (ISO 286-2 compliance)
- Lifecycle Cost Reduction: Documented 40% TCO reduction across 200+ installations
- Global Certification: Compliant with ASME B5.57, ISO 4378-9, and RoHS 3
Unlock Peak Machinery Performance
Contact our engineering team for a free application assessment and receive a configurator toolkit with 3D parametric models tailored to your load/velocity profile. Discover how our lubricant-embedded guide bushes can eliminate unplanned downtime in your critical systems.
