1.The fixture bushing is a mechanical positioning part used in conjunction with the positioning pin to achieve the guiding effect.

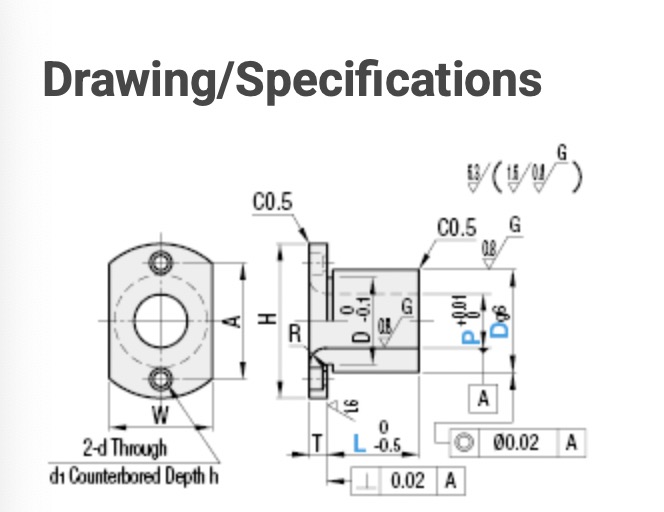

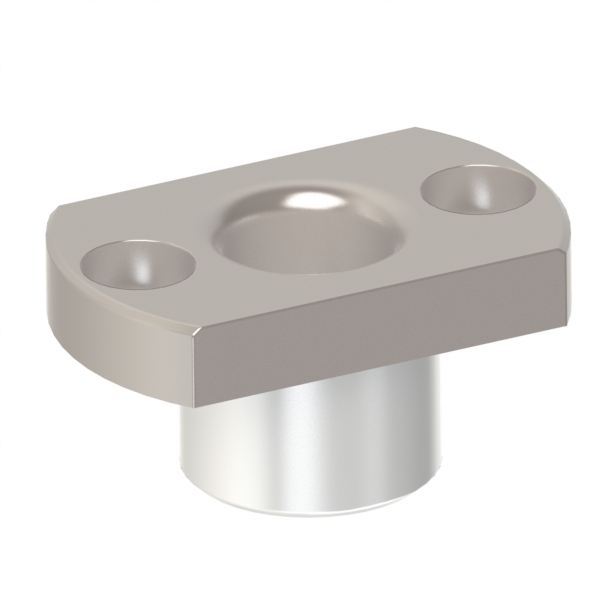

Jig bushings-flange type - Oval type, compact flanged type ,doubie cut flange type.
In this bushings-flange type, the cutting flange type rectangle on both sides of the waist
hole has a large space upward, which is easy to insert the pin and absorb the gap
error. The shoulder can fix the bolt to prevent falling off. The flange shape saves
space, and can effectively prevent the rapid wear of the workpiece..

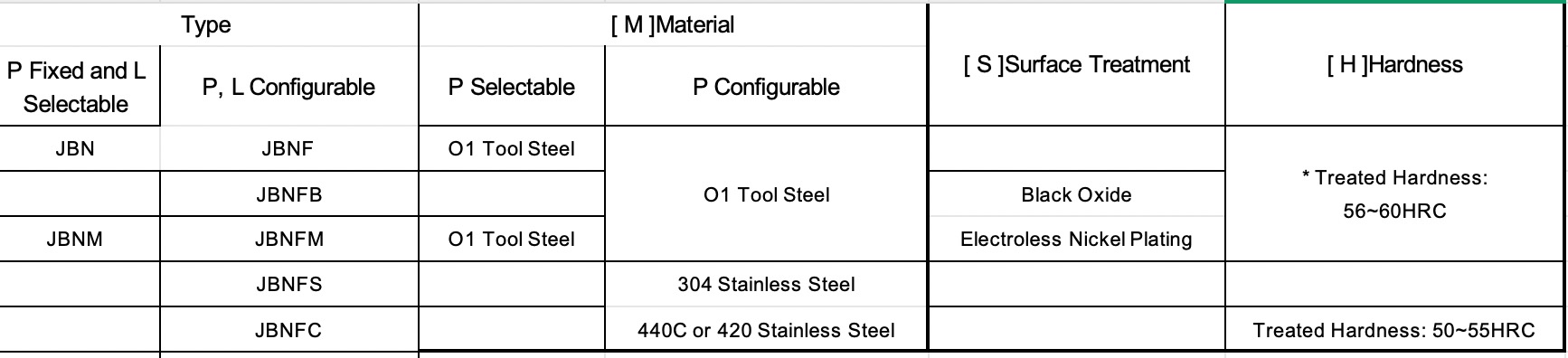

2. Optional material: iron (SKS3); Stainless steel Gcr15; S45C
3. There is no specification and model of electrolytic nickel plating, which can
effectively prevent rust.
Customized Non-Standard Products – Built to Your Exact Specifications!
we also manufacture high-quality non-standard products tailored to your unique designs. Whether you provide detailed drawings or conceptual sketches, our team delivers precision-engineered solutions that meet your exact requirements.
