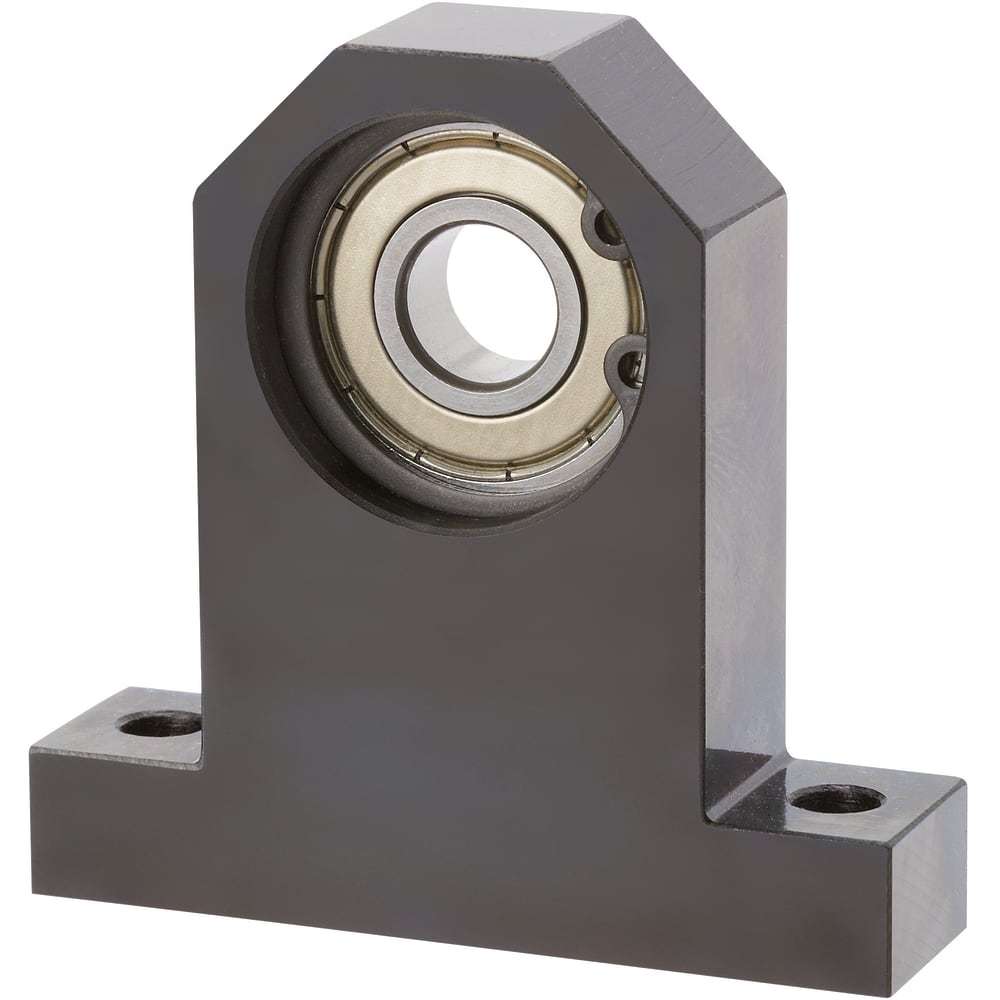

Precision T-Shape Bearing Housings: Customizable Solutions for Industrial Applications

Product Overview

Our T-shape bearing housings represent the pinnacle of engineering versatility, designed to deliver exceptional performance across diverse industrial environments. Featuring a through-hole design with retaining ring mechanism, these housings integrate deep groove ball bearings with customizable material and coating options. Engineered for inner diameters ranging from 3 mm to 50 mm, they provide robust solutions for rotary motion systems requiring precision alignment and optimization.

Key Technical Specifications

1. Structural Design Features

• T-Shape Configuration: Delivers superior radial load distribution and simplified mounting in confined spaces. The unique profile enables direct integration with linear guides and automated assemblies.
• Through-Hole Design: Facilitates easy shaft insertion and maintenance access while maintaining concentricity within ±0.01mm tolerances.
• Retaining Ring Mechanism: Secures bearings without supplementary components, reducing assembly time by 40% compared to traditional locking methods.

2. Material Engineering

|-----------------|---------------------------|------------------------------------------| | Housing | Aluminum / Steel / Stainless Steel (AISI 304/316) | Aluminum: Lightweight (2.7g/cm³) for dynamic applications
Steel: High impact resistance (500 MPa yield strength)
Stainless: Corrosion resistance in chemical/ marine environments | | Ball Bearings| Steel / Stainless Steel | Standard steel for general industrial use
Stainless variants for food/pharmaceutical compliance (H grease) |

3. Surface Treatment Technologies

• Uncoated: Cost-effective solution for controlled environments
• Burnished: Enhanced surface density for abrasion resistance
• Anodized (Aluminum housings): 25μm oxide layer for electrical insulation and color-coding
• Nickel-Plated: 5-15μm coating providing >500hr salt spray resistance (ASTM B117)

4. Bearing Performance Profile

• Deep Groove Ball Bearings: Optimized for combined radial/thrust loads42kN)
• ABEC-1 to ABEC-5 precision grades available
• Temperature range: -30°C to +120°C (extended range on request)

Industrial Applications

• Automation Systems: Robotic joint assemblies requiring compact load-bearing solutions
• Medical Equipment: Sterilizable stainless-steel variants for imaging devices
• Food Processing: Nickel-plated housings with FDA-compliant lubricants
• Precision Machinery: High-speed spindles (up to 15,000 rpm) withodized alignment guides

Customization Capabilities

We provide application-specific engineering support for:

• Dimensional Tailoring: Non-standard inner diameters (3-50mm) and flange thicknesses
• Hybrid Material Pairings: e.g., Aluminum housing with stainless steel bearings
• Specialized Coatings: Multi-layer deposition for extreme environments
• Sealing Solutions: Integrated V-ring or labyrinth seals upon request

1. Manufacturing Precision: CNC-machined components with 5μm dimensional consistency for all metallic components
2. Load-Testing Protocol: 100% production units undergo 72-hour endurance validation
3. Global Compliance: REACH, RoHS, and ISO 9001:2015 certified processes

Request a datasheet or discuss application-specific configurations with our engineering team today.
