Precision Engineered T-Shape Bearing Housings: Customizable Solutions for Industrial Performance

Introduction to Bearing Housings

Bearing housings serve as critical interfaces between rotating shafts and machinery structures, providing precise alignment, load distribution, and environmental protection. Our engineered housing solutions transform standard bearings into complete mechanical systems, ensuring optimal performance across diverse industrial applications from conveyor systems to food processing equipment.

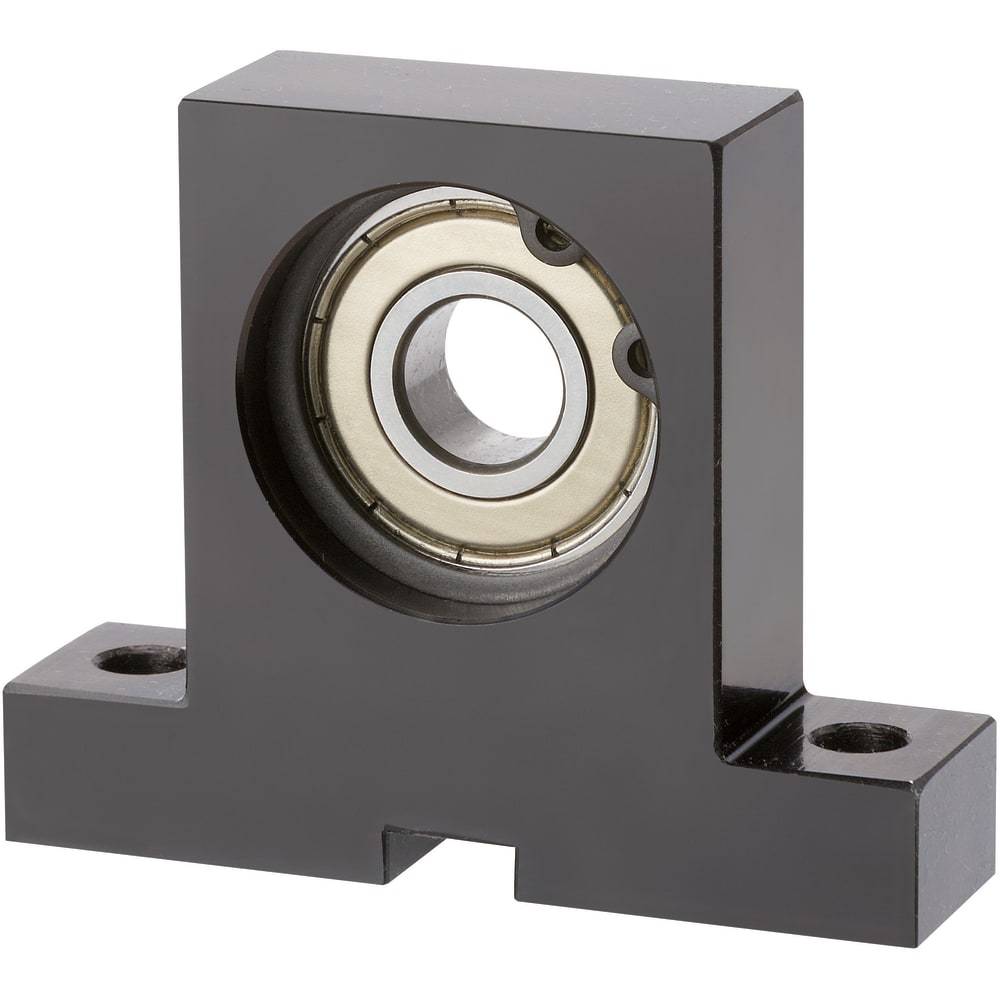

Core Features of T-Shape Bearing Housings

1. T-Shape Structural Design

• Space Optimization: Vertical mounting surface maximizes stability while minimizing footprint
• Rigidity Enhancement: Triangular geometry distributes radial/axial loads evenly
• Universal Mounting: Compatible with standard machine frames and brackets

2. Integrated Functional Components

• Through-Hole Design: Enables simple shaft insertion and axial positioning (ID: 3-50mm)
• Spring Groove System: Secures bearings against axial displacement during vibration
• Retaining Ring Mechanism: Eliminates need for complex locking devices during maintenance

3. Deep Groove Ball Bearing Core

• Handles combined radial/thrust loads up to 7,000 RPM
• Precision-ground raceways maintain ≤0.005mm runout tolerance
• Optional ceramic hybrid bearings available for extreme environments

Customization Capabilities

| Component | Options | Performance Benefits | |-----------------|---------------------------------|---------------------------------------| | Housing Material | Aluminum • Steel • Stainless Steel | Weight reduction • Corrosion resistance • EMI shielding | | Surface Coatings | Anodized • Nickel-plated • Burnished • Uncoated | Enhanced wear resistance • Chemical protection • FDA compliance | | B | Chrome Steel • Stainless Steel | Extended service life • Temperature resilience (-40°C to 150°C) |

Technical Superiority

• Sealing Solutions: Triple-lip contact seals optional for IP68 protection
• Lubrication Ports: Grease nipple provisions for continuous operation
• Thermal Management: Aluminum variants dissipate heat 40% faster than steel
• Dimensional Flexibility: Custom bore tolerances available (h6 to k6)

Industry Applications

• Food & Beverage: Stain
• Material Handling: Impact-resistant steel housings for conveyor rollers
• Pharmaceutical: Anodized aluminum units with zero particulate shedding
• Robotics: Compact flange versions for articulated joints

Our bearing housings undergo rigorous validation including:

1. 500-hour accelerated life testing
2. Salt spray corrosion testing per ASTM B117
3. Vibration analysis up to 5,000 Hz frequency
4. Dynamic load validation at 150% rated capacity
