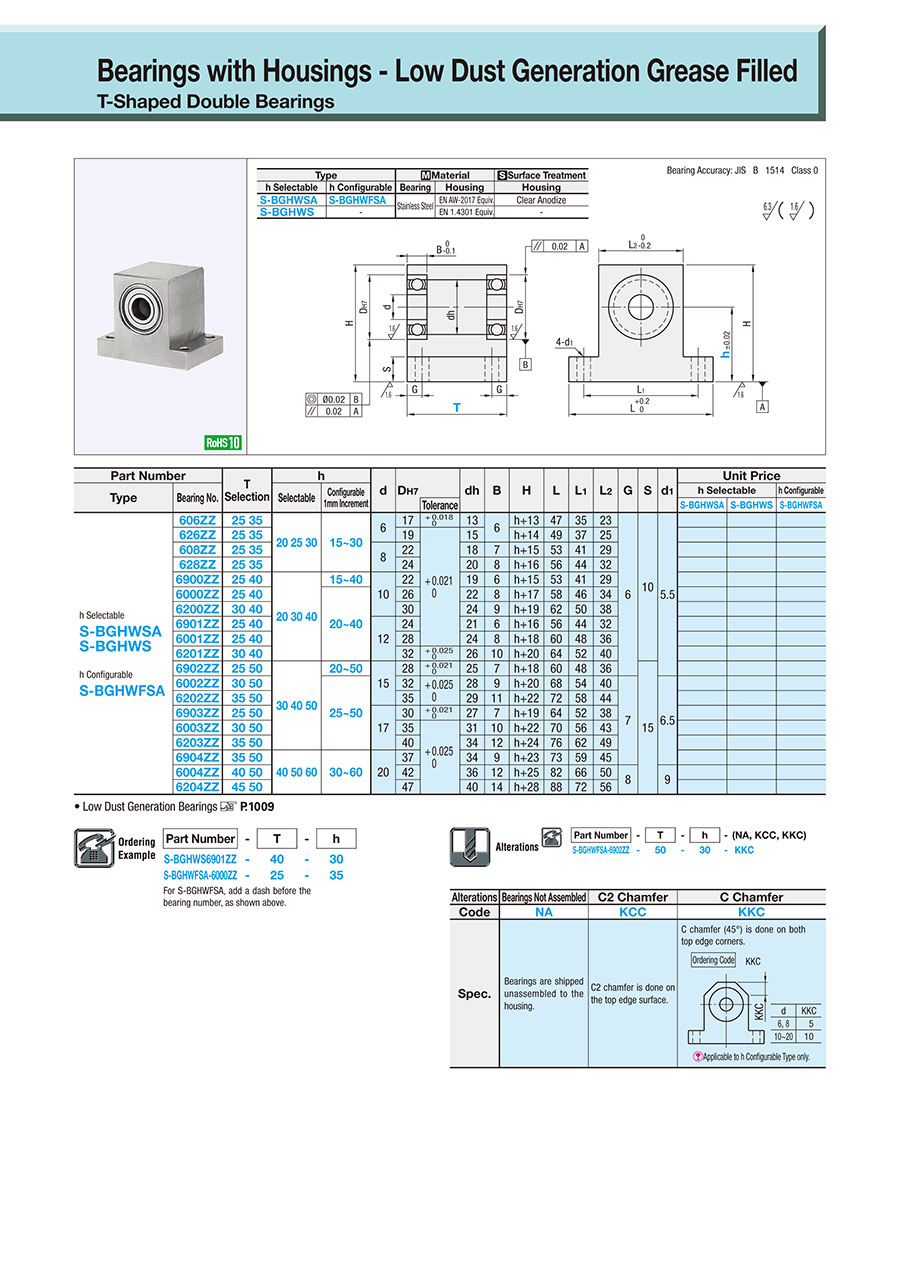

Precision T-Shape Bearing Housings: Engineered for Robust Performance in Demanding Applications

Product Overview

Our T-shape bearing housings with through-bore configuration represent a pinnacle of engineering excellence for industrial applications requiring exceptional load management and spatial efficiency. Designed to accommodate double deep groove ball bearings, these housings deliver unparalleled radial load capacity and bidirectional axial support. Crafted from premium aluminum or stainless steel with anodized surface treatment, they provide a comprehensive solution for high-performance machinery.

Key Technical Specifications

• Housing Geometry: T-shaped profile for optimal mounting stability and space-saving integration
• Bearing Configuration:ore design with double deep groove ball bearings (ID range: 3-50mm)
• Material Options:
• Aluminum: Lightweight (30% lighter than steel) with anodized coating for enhanced surface hardness (500-1000 Vickers)
• Stainless Steel: AISI 304/316 grade with passivation layer for extreme corrosion resistance
• Surface Treatment: Precision anodization (10-25μm thickness) providing:
• 3x improved wear resistance vs. untreated surfaces
• Oxidation Electrical insulation properties (breakdown voltage: 300-500V)
• Load Capacity: Supports combined radial/thrust loads up to 15kN (dynamic) and 22kN (static)

Performance Advantages

1. Enhanced Durability

The anodized aluminum variant achieves surface hardness comparable to sapphire (9 Mohs scale), while stainless steel housings withstand chloride-rich environments (up to 200ppm). Both options exceed 10,000 hours in salt spray testing (ASTM B117).

2. Precision Load Management

The dual deep groove bearing arrangement provides:

• 40% higher radial load capacity than single-bearing units
• ±2.5° axial misalignment compensation
• Vibration reduction (tested to ISO 10816-3 standards)

3. Installation Efficiency

Through-bore design enables:

• 50% faster shaft installation vs. set-screw housings
• Zero backlash shaft fixation
• Maintenance-free operation (lubrication intervals: 8,000 operating hours)

Industry Applications

• Food Processing: Stainless steel units for washdown environments (FDA-compliant)
• Robotics: Aluminum variants for articulated joint assemblies (payload optimization)
• Conveyor Systems: High-speed transfer lines (tested at 10,000 rpm)
• Medical Equipment: Precision positioning stages (sub-micron runout tolerance)
• Renewable Energy: Pitch control mechanisms in wind turbines

• ID tolerance: ISO P6 class (standard), P5/P4 available
• Sealing options: Triple-lip seals, labyrinth, or V-ring configurations
• Temperature range: -40°C to +150°C (extended range on request)
• Mounting accessories: Custom flanges, alignment sleeves, thermal spacers

TKD Information

• Title: T-Shape Bearing Housings | Double Deep Groove Ball Bearings | Anodized Aluminum/Stainless Steel
• Keywords:
• T-shape bearing housing
• Through bore ball bearing
• Double deep groove bearing
• Anodized aluminum housing
• Stainless steel bearing block
• Corrosion resistant housing
• Industrial bearing solutions
• Description: Precision-engineered T-shape bearing housings featuring double deep groove ball bearings in through-bore configuration. Available in anodized aluminum or stainless steel with 3-50mm bore sizes. Designed for maximum load capacity and corrosion resistance in demanding industrial applications.
