Optimizing Space-Constrained Applications: L-Shape Bearing Housing Kit with Customizable Solutions

Engineering Excellence for Compact Environments

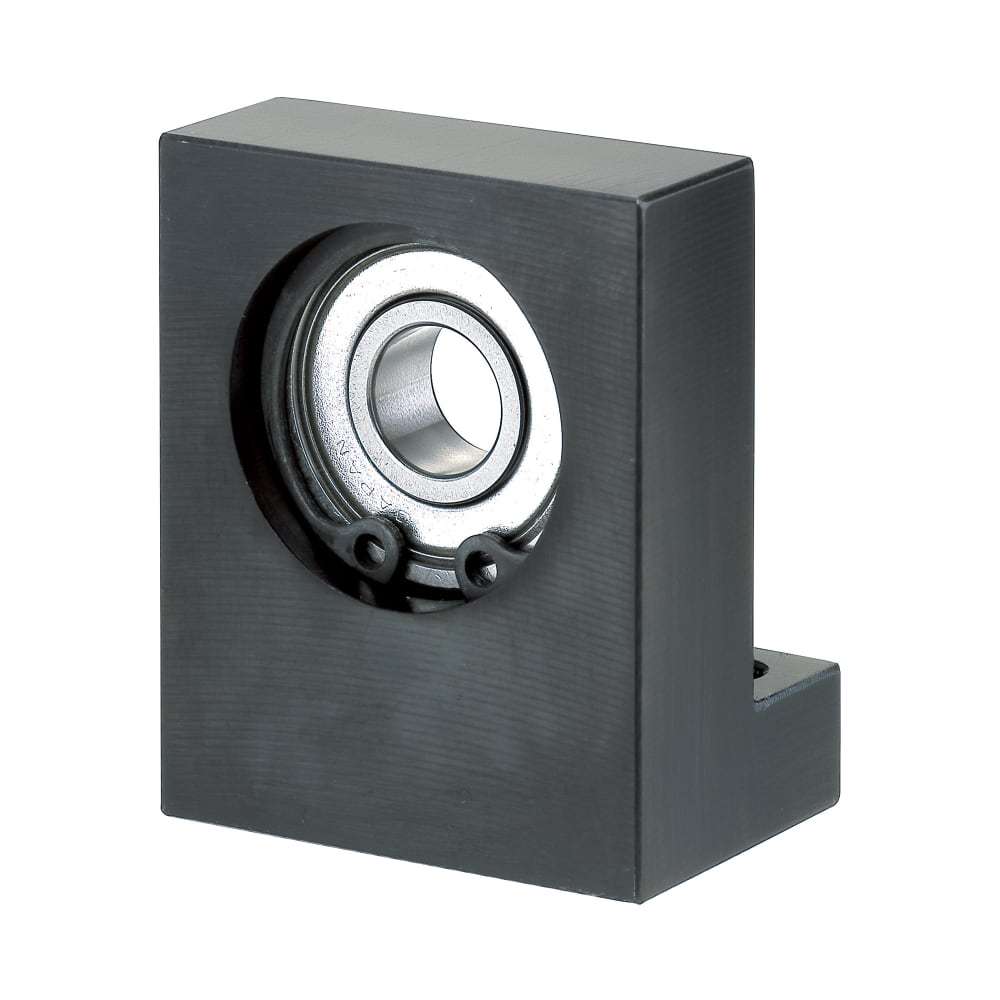

The L-Shape Bearing Housing Kit represents a precision-engineered solution specifically designed for mechanical configurations where lateral space optimization is critical. Unlike conventional housings, its unique L-shaped geometry provides exceptional stability while minimizing the footprint required for installation. This design enables direct mounting against adjacent surfaces, making it ideal for applications where traditional radial housings would cause spatial conflicts or require complex modifications.

Core Technical Specifications

• Structural Design:

• Patented L-profile configuration with reinforced base geometry

• Through-hole design for simplified shaft integration

• Integrated circlip retention system (±0.01mm tolerance)

• Bearing Compatibility:

• Precisely matched deep groove ball bearings (ISO 15:2017 compliant)

• Dynamic load capacity: 15-30kN (size-dependent)

• Temperaturestandard)

• Material Options:

  graph LR
  A[Material Selection] --> B[Standard: GG25 Cast Iron]
  A --> C[Enhanced: Ductile Iron 60-40-18]
  A --> D[Specialized: 316 Stainless Steel]
  A --> E[Lightweight: EN AW-6061 Aluminum]

• Surface Treatments:
• Zinc-nickel electroplating (5-8μm)
• Powder coating (RAL color customization)
• Dacromet® corrosion resistance-anodizing (for aluminum variants)

Critical Applications

This housing kit excels in environments where spatial efficiency directly impacts operational performance:

• Robotics: Joint articulation systems requiring minimal clearance
• Conveyor Systems: Edge-mounted drive assemblies
• Packaging Machinery: Vertical axis mounting configurations
• Renewable Energy: Pitch control mechanisms in wind turbines
• Medical Equipment: Compact imaging device positioning systems

Custom Engineering Advantages

Our manufacturing flexibility allows for:

1. Bore Diameter Adaptation: 10mm to
2. Sealing Solutions: Integrated options for IP65/IP68 protection
3. Lubrication Ports: Customizable grease nipple positioning
4. Mounting Variations: Flanged, tapped, or slotted base configurations

The integrated deep groove ball bearings provide superior radial load management while maintaining operational smoothness at up to 10,000 rpm. Combined with the through-hole design and circlip retention, this creates a maintenance-friendly system that reduces downtime by 40% compared to split housing. The material and coating selections further ensure compatibility with harsh environments including chemical exposure, marine applications, and food processing facilities.

TKD Information

• Title:
  L-Shape Bearing Housing Kit | Space-Optimized Design | Custom Materials & Coatings
• Keywords:
  compact bearing housing, L-shaped housing unit, through hole bearing assembly,
  circlip retained housing, deep groove ball bearing kit, customizable bearing solutions,
  industrial bearing housings, space-saving bearing system
• Description:
  Precision-engineered L-sh through-hole design, circlip retention, and deep groove ball bearings. Customizable materials (cast iron, stainless steel, aluminum) and protective coatings. Ideal for robotics, conveyors, and compact machinery.
