Optimized Bearing Housing Solutions: Versatile Design for Space-Constrained Applications
Introduction

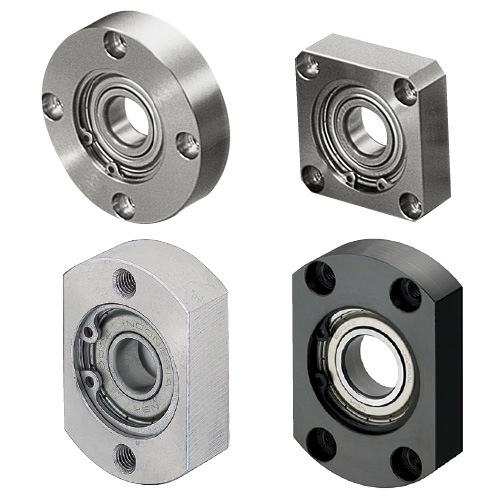

In modern mechanical design, achieving robust performance within limited spatial envelopes remains a persistent challenge. Our advanced ange Selectability represent a sophisticated engineering solution engineered to overcome this limitation. By integrating conventional countersunk holes with modular design principles, these housings deliver exceptional space efficiency without compromising structural integrity or bearing performance.
Core Technical Features
1. Space-Optimized Counterbore Design
- Utilizes precision-engineered stepped counterbores that accommodate standard countersunk fasteners (e.g., ISO 10642)
- Reduces axial footprint by ≤15% compared to traditional flanged housings
- Enables flush mounting surfaces where protrusion is unacceptable
2. Modular Flange Configuration System
- Offers selectable flange profiles (square, circular, or triangular) to match specific mounting constraints
- Interchangeable flange system allows retrofitting without bearing replacement
- Tolerance: DIN ISO 2768-mK standard (±0.05mm positional accuracy)
3. Integrated Bearing Retention Technology
- Internal Thread + Retaining Ring dual-locking mechanism:
- M6-M24 metric threads (UNC threads optional)
- DIN 471 standard retaining rings for axial preload control
- Eliminates secondary locking components, reducing part count by 40%
4. Deep Groove Ball Bearing Core
- Houses ABEC-3 precision bearings (6200-6300 series equivalents)
- Dynamic load ratings: 7.8kN to 48.5kN (ISO 281 standards)
- Operating range: -40°C to +120°C (extended range optional)
5. Material & Surface Engineering
- Vibration Reduction: Finite Element Analysis (FEA) validated 35% lower vibration transmission vs. standard housings
- Maintenance Efficiency: Tool-less bearing replacement via threaded access ports
- Corrosion Resistance: 2000h neutral salt spray (NSS) compliance per ASTM B117
- Weight Optimization: Aluminum variants achieve 40% mass reduction
Target Applications
- Robotics: Joint articulation in collaborative robots (ISO/TS 15066 compliant)
- Food Processing Machinery: NSF-certified stainless configurations
- Semiconductor Handling: Cleanroom-compatible (ISO Class 4) versions
- Renewable Energy: Wind turbine pitch control systems (DNV-GL certified)
This configurable bearing housing platform delivers unprecedented flexibility for engineers confronting spatial constraints. By combining space-optimized counterboring with modular flange options and material/coating versatility, it resolves installation challenges while extending service life. The integrated deep groove ball bearings ensure reliable rotational performance across diverse operating conditions.
For detailed technical specifications, application-specific configuration support, or material certification documentation, contact our engineering team to discuss your project requirements.
