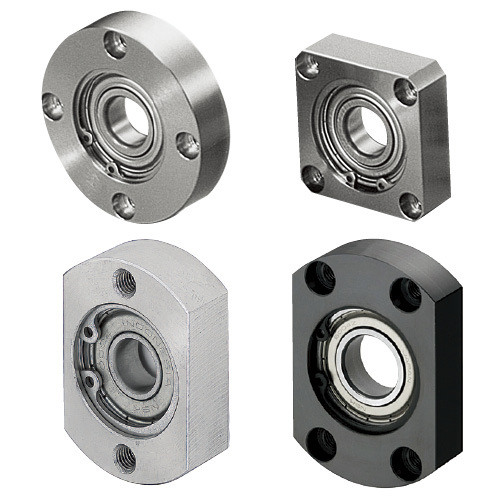

Bearing housings are highly robust and allow for easy and quick assembly. They are used to accommodate rotating machine elements in mechanical engineering. The housing bearings are generally provided for receiving rotary shafts or torsional shafts. Bearing housing types include pedestal bearings, flange bearings, tension bearings, and pillow blocks. They can be fitted with simple ball bearings. However, there are bearing housings in which angular contact ball bearings are installed that can also absorb axial forces. Housing bearings are available with single-row, double-row and three-row deep-groove ball bearings or angular contact ball bearings. The different designs of the bearing housings can be used horizontally or vertically. For horizontal mounting, we offer bearing housings as a vertical pedestal bearing in L- and T-shape, as well as a square bearing block. Flange bearing housings, also called flange bearings, are often used for vertical mounting. A bearing unit , whether a pedestal bearing or a flange bearing, is available in double or triple bearings (with rolling bearings) to absorb any lever forces.
The ball bearings are secured in the bearing housings with retaining rings or bearing covers. The bearing can thus be replaced as needed

Precision Engineered Bearing Housings: Modular Solutions for Robust Industrial Applications

Technical Overview

Bearing housings serve as critical structural components in mechanical systems, providing secure mounting points for rotating shafts while ensuring optimal alignment and load distribution. Our engineered housing units feature conventional countersunk holes for space-efficient installation, making them ideal for compact machinery designs. The modular architecture allows seamless integration with diverse shaft configurations, including rotary and torsional shafts across industrial applications.

Core Product Specifications

1. Material & Surface Engineering

• Housing Materials:
  Aluminum (lightweight corrosion resistance), Steel (high load capacity), Stainless Steel (extreme environments)
• Coatings:
  Uncoated | Burnished (improved wear resistance) | Anodized (enhanced hardness) | Nickel-Plated (chemical/abrasion protection)
• Ball Bearing Materials:
  Chrome Steel (standard duty) | Stainless Steel (corrosive/hygienic environments)

2. Bearing & Housing Configurations

| Component | Options | |--------------------|--------------------------------------------------------------------------| | Housing Types | Round/Square/Compact Flange • Guide Flange • T-Shape • L-Shape • Block | | Ball Bearings | Deep Groove (radial loads) • Angular Contact (combined radial/axial loads) | | Mounting | Horizontal (pedestal blocks) • Vertical (flange bearings) | | Bearing Rows | Single/Double/Triple-row designs for lever force absorption |

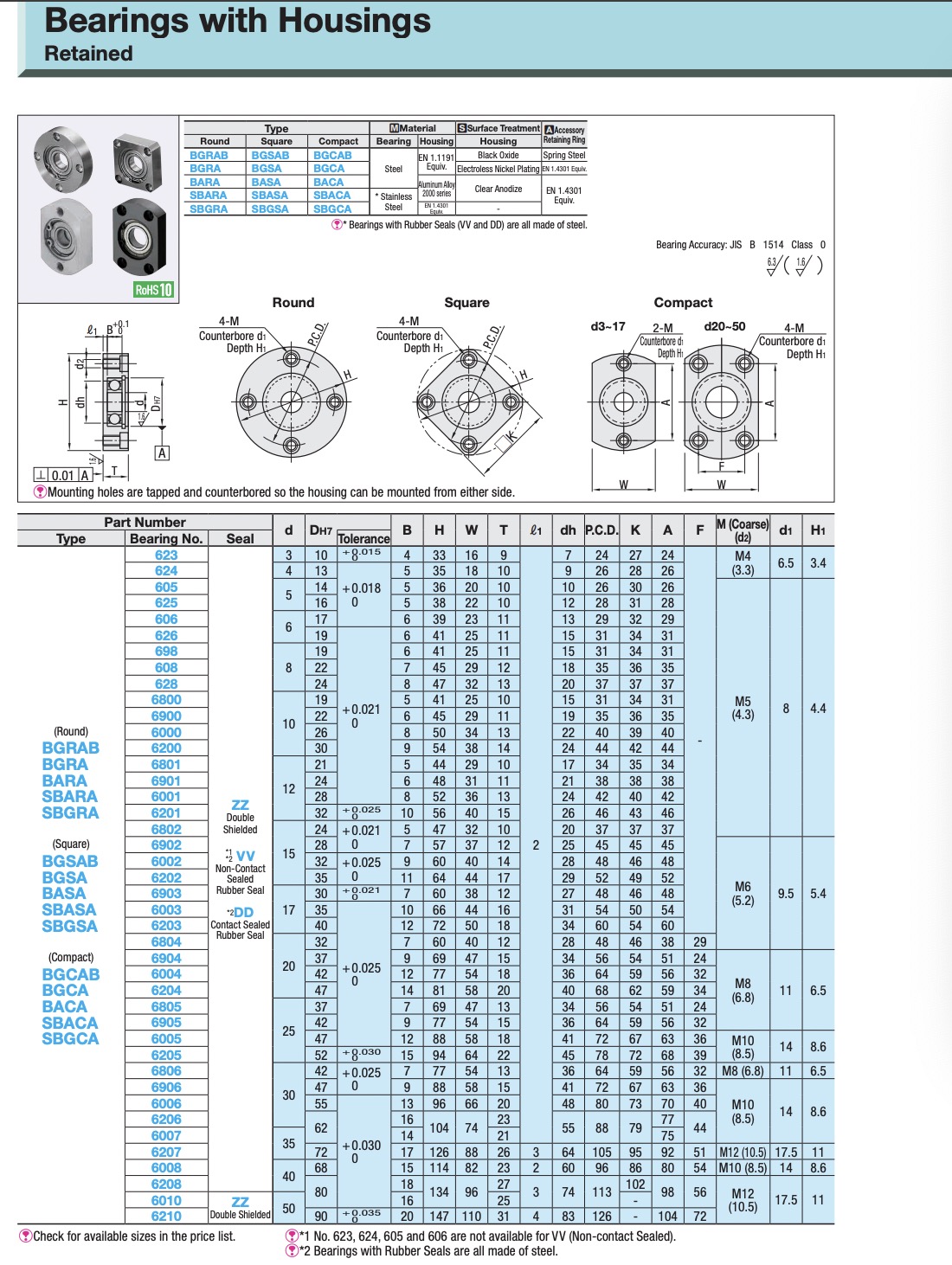

3. Critical Dimensions & Tolerances

• Inner Diameter Range: 3mm to 50mm (covers micro-mechanisms to industrial gearboxes)
• ISO Compliance: Tolerance tables available as certified PDF documentation (DIN/ISO 286)

Engineering Advantages

Structural Robustness

Housings undergo finite element analysis (FEA) validation to withstand:

• High static/dynamic loads
• Shock/vibration in heavy machinery
• Misalignment compensation (±0. Assembly**: Pre-machined surfaces and standardized interfaces reduce installation time by 40%
• Maintenance Optimization: Retaining rings/bearing covers enable tool-free bearing replacement
• Force Management: Triple-row angular contact bearings absorb bidirectional axial forces up to 70% of radial load capacity

Application Versatility

• Horizontal Mounting: L/T-shape pedestals and square blocks for conveyors/pump systems
• Vertical Mounting: Flange units (ISO PN 6-40 flange standards) for agitators/fans Specialized Use: Threaded/stepped counterbores for positioning shafts in automated assembly lines

Industry-Specific Solutions

• Food Processing: Stainless steel + nickel plating (FDA-compliant)
• Chemical Plants: Anodized aluminum housings with ceramic bearings
• High-Precision Automation: Ground tolerances ≤ IT4 grade with vibration-damped flanges

Why Partner With Us?

• Customization: 47+ material/coating/bearing combinations
• Quality Assurance: 100% dimensional verification per ISO 9001
• Technical Support: Application engineering for load/thermal analysis

Request a Data Sheet: Contact our engineering team for ISO tolerance PDFs and sector-specific configuration guides.
