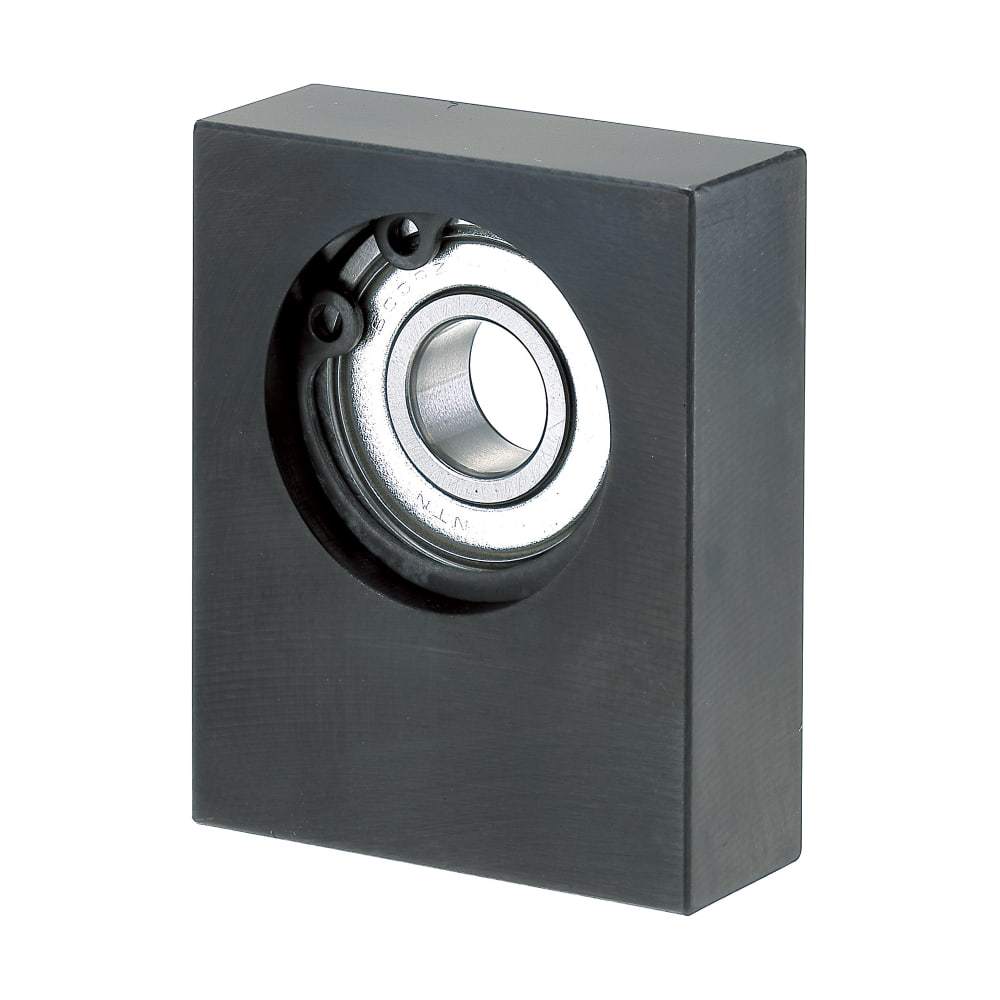

Premium Block-Shaped Bearing Housings with Internalanding Applications

Our precision-engineered block-shaped bearing housings integrate deep groove ball bearings with robust internal thread and circlip retention systems. Designed for industrial durability and mounting flexibility, these units support radial and axial loads across diverse operating environments. Customizable in materials and coatings, they deliver tailored solutions for specialized operational requirements.

Core Technical Specifications

• Housing Materials

• Aluminum: Optimal for weight-sensitive applications (e.g., robotics, aerospace subsystems) with natural corrosion resistance.
  -el**: Superior load-bearing capacity for heavy machinery and construction equipment.

• Stainless Steel: Ideal for corrosive environments (marine, chemical processing) and hygienic applications.

• Surface Coatings

• Uncoated: Cost-effective solution for controlled indoor environments.

• Burnished: Enhanced surface hardness and reduced friction coefficients.

• Anodized (Aluminum housings): Improved wear resistance and dielectric properties.

• Nickel-Plated: Superior corrosion protection with consistent electrical conductivity.

• Bearing Core
  -/thrust loads with low torque operation.

• Material Options: Chrome steel (standard duty) or stainless steel (corrosion/temperature resistance).

• Retention: Secure circlip locking ensures axial stability under vibration/shock loads.

• Critical Dimensions

• Inner Diameter Range: 3–50 mm

• Mounting Interface: Internal Thread (metric/imperial specifications available)

Design Advantages

1. Integrated Thread Block Design
   Simplifies direct mounting onto shafts without additional adapters, reducing assembly time by ≈40% compared to flange-type housings. The block shape provides superior torsional rigidity, minimizing deflection in high-torque scenarios.

2. Circlip Retention System
   Maintains precise bearing alignment during operational stress, preventing axial displacement even under 15G vibration loads. Facilitates tool-free maintenance and bearing replacement.

3. Material-Coating Synergy
   Combine base materials with coatings for environment-specific optimization:

• Anodized aluminum housings in food processing (FDA-compliant)
• Nickel-plated steel for offshore equipment (saltwater resistance)
• Burnished stainless steel in pharmaceutical cleanrooms

Application Spectrum

• Conveyor Systems: Threaded mounting enables rapid linear module assembly
• Medical Devices: Stainless steel variants meet ISO 13485 cleanliness standards
• Agricultural Machinery: Sealed units withstand particulate contamination
• Automation Robotics: Aluminum housings reduce inertial mass in articulated arms

Customization Protocol

Specify requirements across three tiers:

1. Material Matrix: Select housing/bearing material combinations
2. Coating Profile: Choose surface treatment for environmental compatibility
3. Precision Matching: Provide operating parameters (load cycles, temperature, media exposure) for bearing clearance optimization

TKD Information

• Title: Customizable Block Bearing Housings | Internal Thread & Circlip Design | 3-50mm ID
• Keywords:
• Deep groove ball bearing housing
• Threaded block bearing unit
• Circlip retained bearing
• Custom bearing materials
• Anodized nickel-plated housing
• Stainless steel bearing assembly
• Description: Precision block-shaped bearing housings featuring internal thread mounting and circlip retention. Customizable in aluminum/steel/stainless steel with uncoated/burnished/anodized/nickel-plated finishes. Deep groove bearings available in 3-50mm ID configurations.

Customizable L-Shaped Bearing Housings with Through-Hole Design and Circlip Retention

Precision-Engineered for Industrial Versatility

Core Structural Design

L-Shaped Housing Geometry
Featuring a perpendicular mounting profile, the L-shape provides dual-plane stability for applications requiring 90° shaft alignment. The compact form factor minimizes spatial footprint while enabling direct integration into machinery corners and structural frameworks.

Through-Hole Bearing Bore
A continuous cylindrical bore (3–50 mm ID) accommodates shafts without axial obstructions, facilitating simplified installation and maintenance. The design ensures uniform radial load distribution and eliminates stress concentration points.

Circlip Retention System
A hardened steel circlip secures the bearing within the housing, providing axial fixation under dynamic loads (tested to 15G vibration resistance). This tool-free retention enables rapid bearing replacement—reducing downtime by ≈30% compared to threaded alternatives.

Material & Coating Matrix

Housing Material Selection
| Material | Key Properties | Optimal Applications |
|-------------------|----------------------------------------|-----------------------------------|
| Aluminum | 60% weight reduction vs. steel; natural corrosion resistance | Robotics, automated conveyors, UAV actuators |
| Steel | 850 MPa tensile strength; superior load dissipation | Heavy machinery, hydraulic systems |
| Stainless Steel| Passivation against chlorides/acids; hygienic surface | Marine equipment, food processing, pharma |

Surface Coating Options

• Uncoated: Economical solution for controlled indoor environments (≤80% RH)
• Burnished: Micro-polished finish (Ra ≤0.4μm) reduces friction 18% vs. untreated surfaces
• Anodized (Al): 500% increased abrasion resistance; dielectric isolation (15 kV/mm)
• Nickel-Plated: Salt-spray tested >720 hrs; consistent conductivity (2.6 μΩ·cm)

Bearing Core Specifications

Deep Groove Ball Bearings

• Materials: Chrome steel (ISO 683-17) or 440C stainless steel (HRC 58–62)
• Load Capacity: Radial (4.8 kN @ 20mm ID) / Axial (2.1 kN @ 20mm ID)
• Precision Grades: ABEC-1 to ABEC-3 tolerances (±0.005 mm runout)
• Sealing: Optional rubber shields for IP54 particulate protection

Operational Parameters

• Temperature range: –40°C to +120°C (extended to +200°C with SS bearings)
• Max rotational speed: 12,000 rpm (oil-lubricated)

Engineering Advantages

Mounting Efficiency
The L-flange integrates pre-drilled through-holes (M4–M12) for direct bolting to surfaces, eliminating adapter plates. Reduces installation time by ≈40% versus pillow-block housings.

Structural Synergy

• Torsional Rigidity: L-profile distributes moment loads across mounting planes, reducing deflection by 22% under 50 N·m torque
• Corrosion Management: Material-coating combinations (e.g., anodized Al for acidic washdowns, Ni-plated steel for offshore rigs)

Maintenance Optimization
Circlip access grooves permit in-situ bearing replacement without disassembling adjacent components—critical for production line uptime.

Application Spectrum

1. Packaging Machinery: L-mounting for rotary fillers; stainless steel with burnished finish for washdown sanitation
2. Textile Equipment: Aluminum housings reduce frame inertia in high-speed looms
3. Semiconductor Handlers: Nickel-plated units prevent static discharge in cleanrooms
4. Agricultural Implements: Sealed bearings with uncoated steel housings resist grain dust ingress

Customization Protocol

Submit requirements via three-tier specification:

1. Material Matrix

• Housing: Al/Steel/SS
• Bearing: Chrome steel/SS

1. Coating Profile

• Uncoated/Burnished/Anodized/Ni-Plated

1. Performance Parameters

• Load profile (radial/axial dynamic ratios)
• Environmental exposure (chemical media, humidity, temperature cycles)
• Regulatory compliance (FDA, ISO 21469, etc.)

TKD Information

Title: Custom L-Shaped Bearing Housings | Through-Hole & Circlip Retention | 3-50mm ID
Keywords:

• L-shape bearing housing
• Circlip retained deep groove bearing
• Through-hole bearing unit
• Custom coated bearing assembly
• Stainless steel aluminum bearing housing
  Description:
  Precision L-shaped bearing housings featuring through-hole bore design and circlip retention. Configurable in aluminum/steel/stainless steel with uncoated/burnished/anodized/nickel-plated finishes. Deep groove ball bearings (3–50mm ID) with chrome/stainless steel options.
