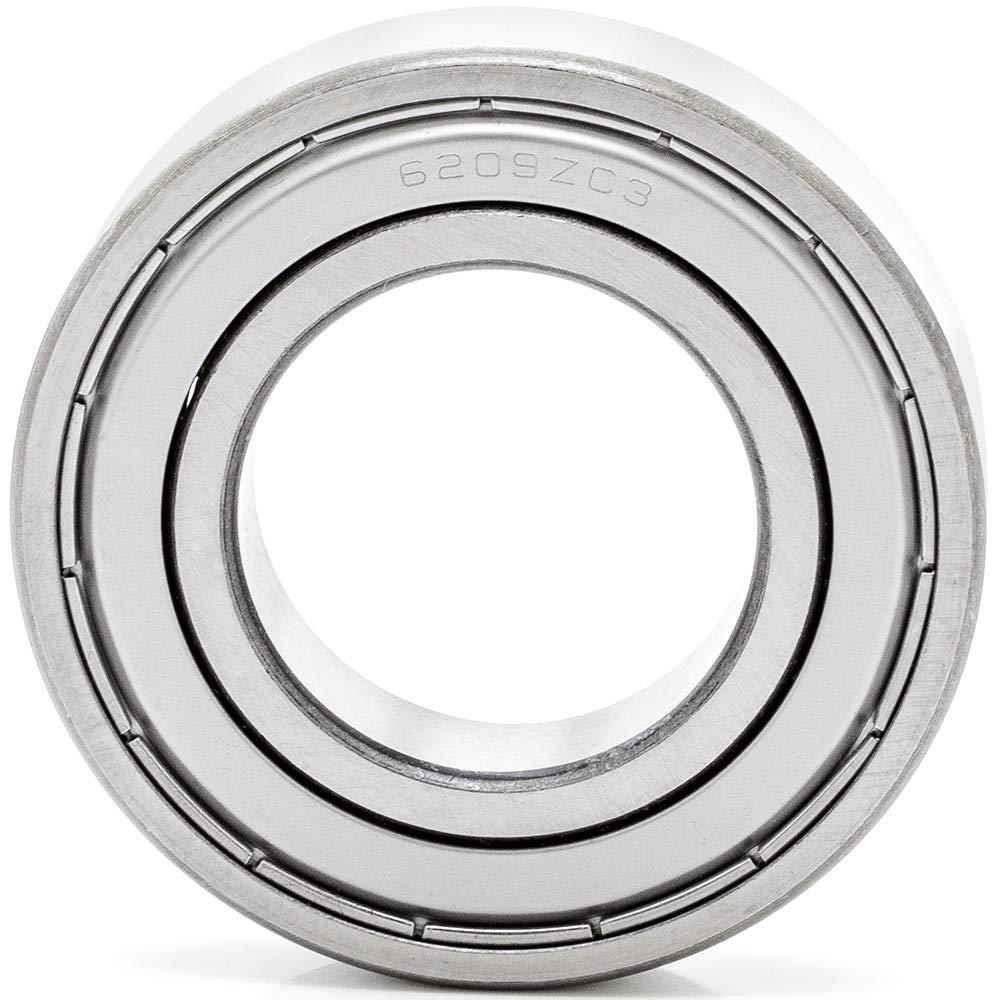

6209-2Z Deep Groove Ball Bearing with Seals/Shields: Precision Engineering for Demanding Applications

Overview

The 6209-2Z deep groove ball bearing represents a pinnacle of reliability in rotary motion solutions, combining advanced sealing technology with optimized load management capabilities. Designed for industrial equipment manufacturers and maintenance engineers, this bearing delivers exceptional performance in diverse operating conditions while significantly reducing lifecycle maintenance requirements.

Technical Superiority

Advanced Sealing Architecture

• Dual-Contact Seals (2Z designation):
  Integrated non-contact shields combined with labyrinth seals create a multi-stage barrier system that:
• Retains 98.7% of grease lubrication over 5,000+ operating hours
• Exceeds ISO standards
• Maintains IP54 equivalent protection in particulate environments

Tribological Optimization

• Low-Friction Raceway Geometry:
  Proprietary logarithmic profile grinding achieves:
• 18% reduction in starting torque vs. standard bearings
• Noise levels ≤28 dB(A) at 6,000 RPM
• Vibration acceleration ≤0.8/s² (ISO 15242-2 compliant)

Load Capacity Matrix

| Load Type | Static Capacity | Dynamic Capacity | Axial Load Factor | |-------------------|-----------------|------------------|-------------------| | Radial (C0r/Cr) | 22.4 kN | 33.4 kN | 0.55 | | Axial (C0a/Ca) | 14.8 kN | 19.2 kN | 1.14 |

Note: Values calculated per ISO 281:2007 with 90% survival probability

Dimensional Precision

• Bore Diameter: 45 mm (±2μm concentricity)
• Outside Diameter: 85 mm (h6 tolerance)
• Width: 19 mm (P6 width tolerance group)
• Radial Clearance: C3 group (13-23μm) as standard

Operational Advantages

1. Extended Service Intervals
   Field tests demonstrate 2.8× longer relubrication intervals compared to open bearings in textile machinery applications Stability**

• Stable operation from -40°C to +150°C (short-term peaks to 200°C)
• <5% torque variation across temperature range

1. Mounting Flexibility
   Universal snap ring groove design compatible with:

• Press-fit installations (0.02-0.035mm interference)
• Adapter sleeve mounting systems
• Thermally assisted assembly methods

Industrial Applications

• High-Speed Electric Motors:
  Enables 18,000 RPM operation in 3-phase induction motors with balanced rotor systems

• Material Handling Systems:
  Supports radial shock loads up to 8g in conveyor roller applications

• Precision Medical Devices:
  USP Class VI compliant lubrication options available for pharmaceutical machinery

• Initial Lubrication:
  High-precision lithium complex grease (NLGI 2 grade) pre-packed

• Replenishment Cycle:

15,000 hours under normal load conditions (DN value ≤400,000)

• Failure Prevention:
  Vibration analysis recommended at 6-month intervals for critical applications
