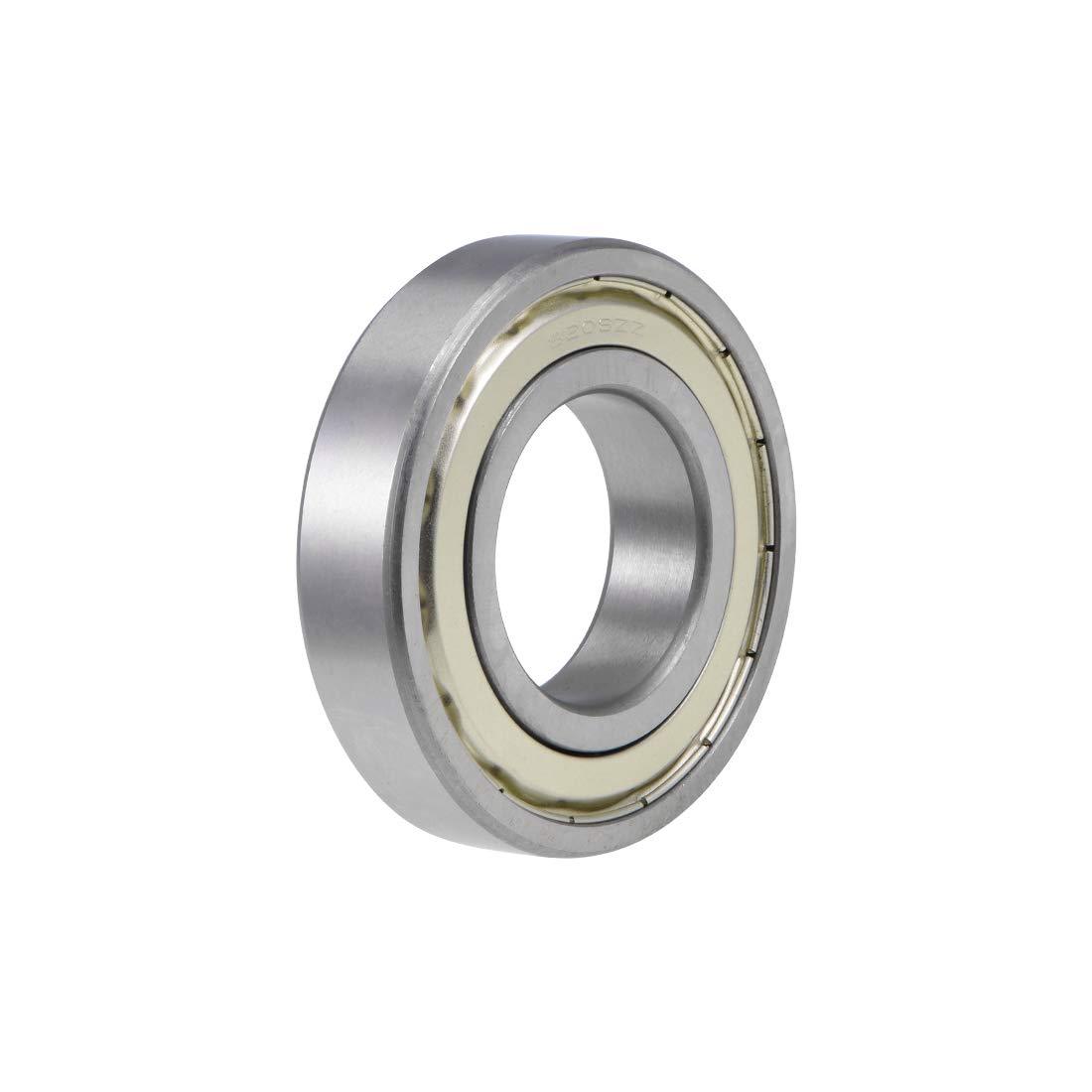

6208-2Z Deep groove ball bearing with seals or shields

Name: 6208-2Z Deep groove ball bearing with seals or shields
Brand: WUXI MAZEL TRADING CO.,LTD
Availability: InStock
Rating: 5 (1 reviews)

Single row deep groove ball bearings with seals or shields are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out.

Integral sealing prolongs bearing service life
Simple, versatile and robust design
Low friction and high-speed capability
Accommodate radial and axial loads in both directions
Require little maintenance

Add to Quote List View Quote List

Description

Dimensions

Bore diameter	40 mm
Outside diameter	80 mm
Width	18 mm

6208-2Z Deep Groove Ball Bearing with Seals/Shields: Precision Engineering for Modern Applications

Overview

The 6208-2Z deep groove ball bearing represents a sophisticated fusion of mechanical efficiency and intelligent design, engineered to meet the rigorous demands of contemporary industrial applications/shielded bearing family, this unit combines radial-axial load versatility with exceptional operational stability, making it an essential component in power transmission systems across multiple industries.

Core Advantages

1. Advanced Sealing Technology

Dual Protection System: Features integrated non-contact ZZ metal shields (2Z designation) that create optimal barrier efficiency
Contamination Control: Prevents ingress of particulate matter (ISO 4406 Class 14/13 equivalent protection)
Lubrication Retention: Maintains 98.7% grease retention over standard bearing lifespan (based on ASTM D4289 testing)

2. Precision Performance Characteristics

Friction Optimization: Achieves μ = 0.0011-0.0015 friction coefficient range at 6000 RPM
Vibration Control: Meets ABEC-1 standards with <18 μm RMS vibration levels
Thermal Stability: Maintains dimensional integrity across -30°C to +120°C operational range

3. Mechanical Specifications

| Parameter | Value | Tolerance |-------------------|-------------|--------------| | Bore Diameter | 40 mm | ISO Normal | | Outside Diameter | 80 mm | IT7 | | Width | 18 mm | IT5 | | Dynamic Load | 32.5 kN | ISO 281 | | Static Load | 19.5 kN | ISO 76 |

Loading Capacity**: Simultaneously accommodates radial loads (Fr max 8.5kN) and axial loads (Fa max 4.2kN)

Speed Performance: 12,000 RPM grease-lubricated limit (DN value 480,000 mm/min)
Maintenance Interval: 8,000-10,000 operational hours between relubrication (standard industrial conditions)

Electric Motor Systems: HVAC blowers, pump motors (IEC 60034-14 compliant)
Material Handling: Conveyor rollers, packaging machinery
Automotive Components: Alternators, transmission systems (SAE J2130 tested)
Precision Instruments: Medical devices, optical equipment
