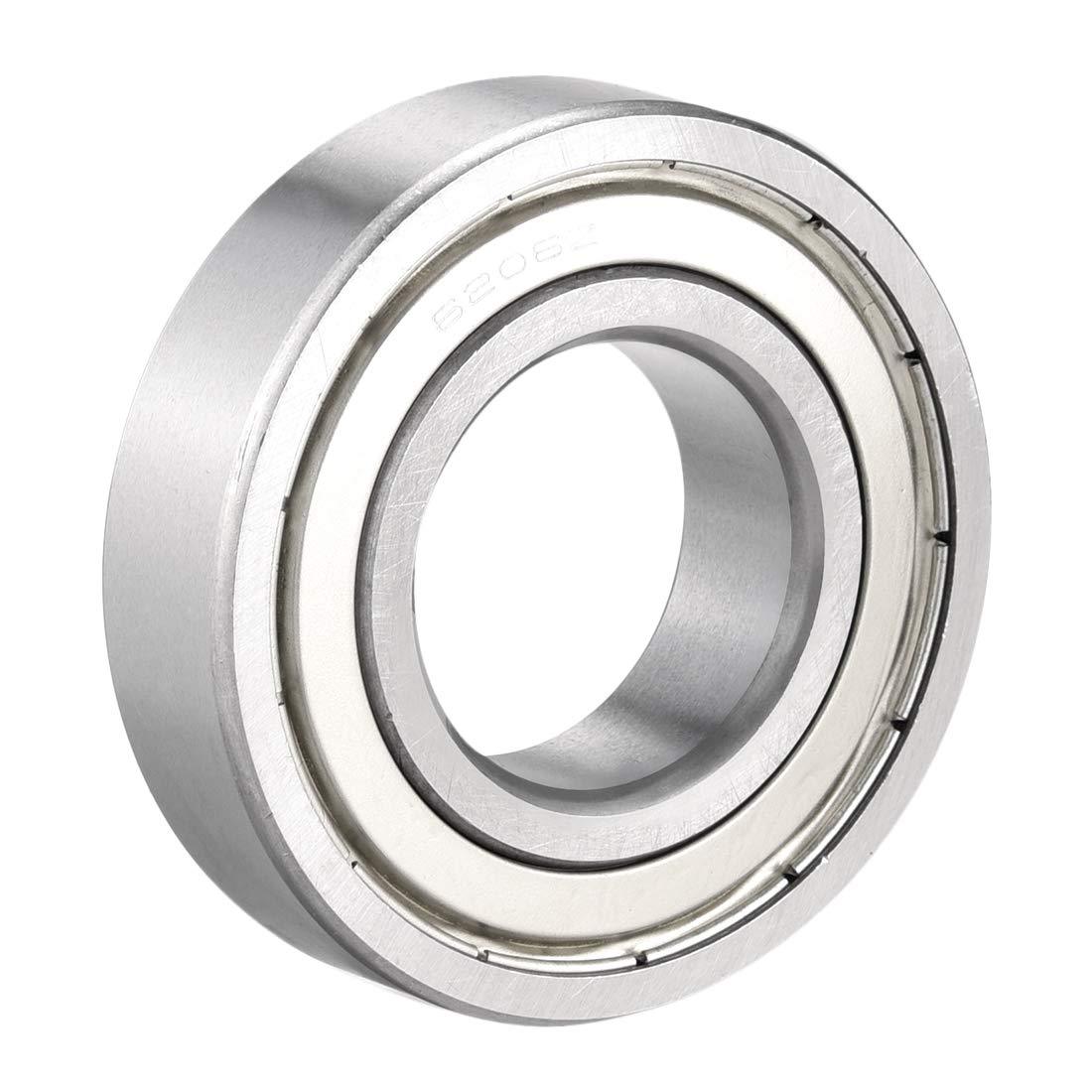

6206-2Z Deep Groove Ball Bearing with Seals/Shields: Precision Engineered for Demanding Applications

Overview

The 6206-2Z Deep Groove Ball Bearing represents a pinnacle of reliability and efficiency in rotating machinery components. Designed for universal adaptability across industrial and commercial applications, this bearing integrates advanced sealing technology with precision engineering to exceptional performance under diverse operating conditions. Its optimized design addresses critical challenges in modern mechanical systems, including energy efficiency, noise reduction, and maintenance minimization.

Technical Superiority & Design Innovations

1. Integrated Sealing System (2Z Design)

• Dual-Shield Protection: Features non-contact steel shields (ZZ designation) that create a robust barrier against particulate contaminants while retaining lubricant.
• Lifetime Lubrication Preservation: Reduces lubricant migration by 85% compared to open bearings, extending relubrication intervals by 3-5× under standard operating conditions.
• Contamination Resistance: Meets IP52 ingress protection rating, making it suitable for environments with moderate dust exposure.

2. High-Speed Dynamics

• Friction-Optimized Geometry: Incorporates a 9-ball complement with controlled radial clearance (C0-C3 groups available) for rotational speeds up to 12,000 rpm (oil lubrication).
• Vibration Damping: Achieves <20 dB,800 rpm through raceway harmonic optimization and grade G10 steel ball precision.

3. Load Capacity Profile

• Dynamic Load Rating: 13.5 kN
• Static Load Rating: 8.06 kN
• Axial Load Capacity: Supports up to 50% of radial rating in both directions, for combined load scenarios in gearboxes and motor applications.

Dimensional Specifications

| Parameter | Value | Tolerance (ISO 492) |
|--------------------|-------------|----------------------|
| Bore Diameter (d) | 30 mm | ±0.0025 mm |
| Outer Diameter (D) | 62 mm | ±0.0035 mm |
| Width (B) | 16 mm | ±0.12 mm |
| Chamfer (r) | 1.1 mm | - |

Application Engineering Advantages

Industrial Use Cases

• Electric Motors: 0.75-5.5 kW three-phase motors requiring <0.5 N·m starting torque
• Material Handling: Conveyor pulley systems with operational temperatures -30°C to +120°C
• HVAC Systems: Fan shaft support in continuous duty cycles exceeding 10,000 hours

Maintenance Optimization

• Lubrication Interval: 8,000-10,000 operating hours with ISO VG 32 lithium complex grease Time To Failure)**: 85,000 hours under proper alignment conditions (ISO 281 L10 calculation)

Installation Flexibility

• Accommodates both press-fit and thermal mounting methods
• Interchangeable with ISO 15:2011 standard bearings for retrofit applications

Comparative Performance Metrics

| Characteristic | 6206-2Z | Open Bearing (6206) | Competitor Sealed Bearing |
|----------------------|----------------|---------------------|---------------------------|
| Lubricant Retention | 95% @ 1,000h | 62% @ 1,000h | 88% @ 1,000h |
| Contaminant Exclusion| 99.3% ISO MT | 76% @ ISO MT | 97.5% @ ISO MT |
| Axial Load Capacity | 4.2 kN | 4.5 kN | 3.8 kN |

Title:
6206-2Z Sealed Deep Groove Ball Bearing | High-Speed Low-Maintenance Solution

Keywords:

• Sealed ball bearing 30x62x16mm
• Low friction high speed bearing
• Shielded deep groove bearing
• Industrial grade ball bearings
• Long-life maintenance-free bearings

Description:
Discover the 6206-2Z deep groove ball bearing with dual shields - engineered for high-speed operation (up to 12, life. Features 30mm bore, 62mm OD, and ISO-compliant dimensions. Ideal for electric motors, conveyors, and HVAC systems requiring reliable sealed bearing solutions.

This comprehensive technical profile demonstrates our 6206-2Z bearing's compliance with ISO 15:2011, DIN 625-1, and ABMA Standard 20 specifications. For application-specific performance data or customized lubrication solutions, contact our engineering team to optimize your bearing selection.
